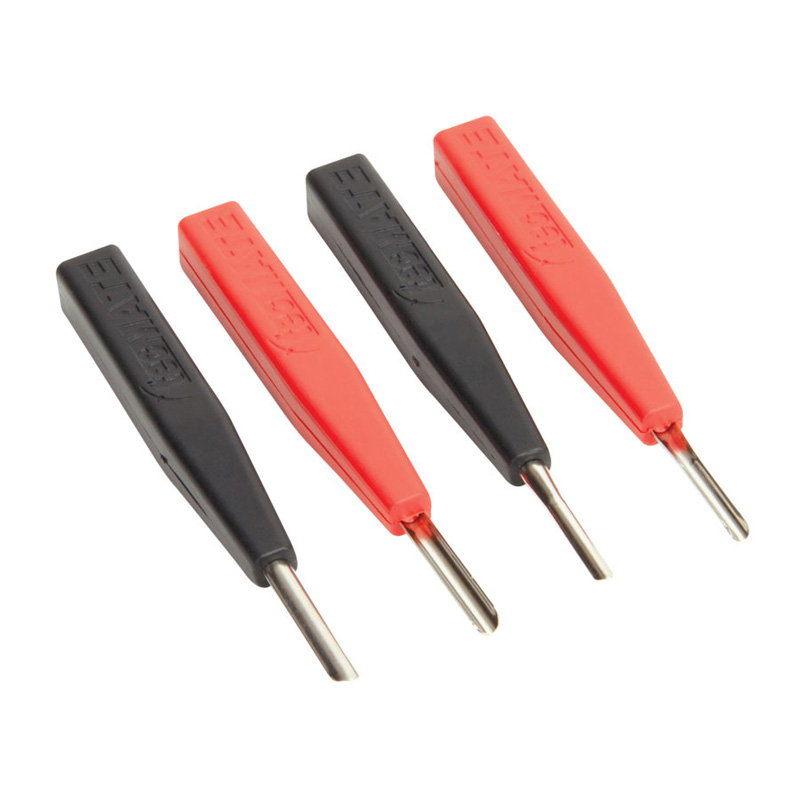

PROBULATOR BACKPROBE KIT SMALL LARGE SCOOP-4PCS

PROBULATOR KIT -10%

PROBULATOR BACKPROBE KIT SMALL LARGE SCOOP-4PCS

OEM #TM-99

The compact dual-display peak-voltage ignition tester that makes troubleshooting all types of spark ignition systems easier, safer, quicker. Key features:

The application of this versatile tool is based on two basic points:

• Different types of ignition systems (AC-CDI, DC-CDI, transistor, magneto, coil and points) have the same basic components with signals measured being generally similar in nature and magnitude.
• No disassembling of ignition components is required (this avoids accidentally introducing, or correcting, poor contacts in the system, which may further confuse and delay resolution of the unidentified problems).

Two signals from the same cylinder can be compared simultaneously:

• Secondary high tension/peak volts - 10, 20, 40 kV scales - use the caliper to measure high voltage between the ignition coil and the spark plug.
• SPARK current - measure the consistency of the high voltage spark current signal and find/see misfires.
• Primary low tension/peak volts - 10, 40 or 400Vpk scales - use the RED and BLACK silicone tester cables to measure primary signals between the ICU and the power supply (battery or charge coil), timing pick-up (pulse coil or hall sensor), ignition coil and switches (key, emergency stop, foot stand, throttle).

*POWER ON/OFF including “auto off” if no signal is measured.

INCLUDED: The standard kit includes the instrument with rugged rubberized protective and mounting holster, combination spark cable caliper pick-up with silicon lead, stick-coil adapter, silicon test lead set with insulated crocodile clips and Probulator back probes, 12VDC 6 ½ ft/200 cm power lead, instruction manual and quick reference guide all packed in a custom carry case.

Two-year limited warranty.
