STATOR + FLYWHEEL POL KIMPEXHD

Image-1 Kimpex HD Stator and Improved Flywheel Kit POLARIS - 345637 STATOR + FLYWHEEL POL KIMPEXHD RMS900-108990 RMS900-108990 KIMPEXHD
Image-1 Kimpex HD Stator and Improved Flywheel Kit POLARIS - 345637 STATOR + FLYWHEEL POL KIMPEXHD RMS900-108990 RMS900-108990 KIMPEXHD Image-2 Kimpex HD Stator and Improved Flywheel Kit POLARIS - 345637 STATOR + FLYWHEEL POL KIMPEXHD RMS900-108990 RMS900-108990 KIMPEXHD Image-3 Kimpex HD Stator and Improved Flywheel Kit POLARIS - 345637 STATOR + FLYWHEEL POL KIMPEXHD RMS900-108990 RMS900-108990 KIMPEXHD

Kimpex HD Stator and Improved Flywheel Kit POLARIS - 345637 -10%

STATOR + FLYWHEEL POL KIMPEXHD

OEM #RMS900-108990

Stator and Improved Flywheel

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

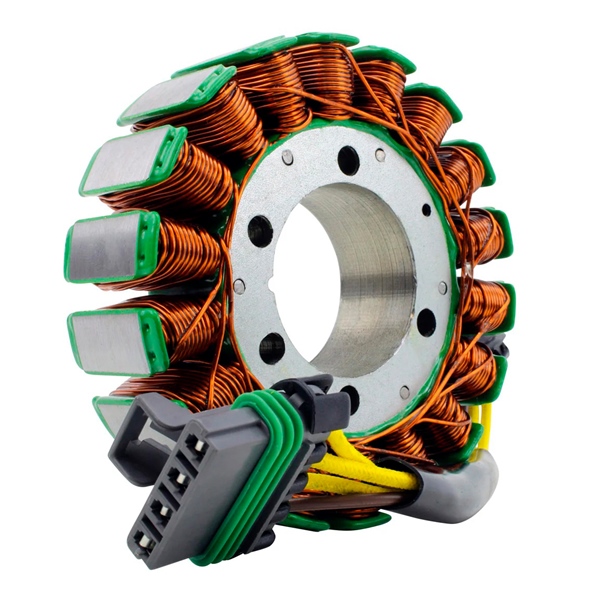

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included

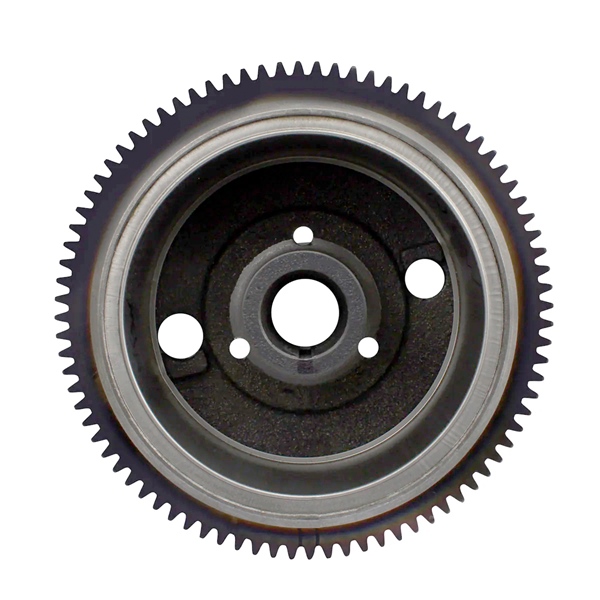

Heavy Duty Flywheel


Features

Built to OEM size: Fits precisely in your ride: install it and forget it.

Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.

High grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.

Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.

$629.99 $566.99
Online Qty: 0
In Store Qty: 0
  • Fitment
  • Details
CategoryMakeModelYear
UTVPOLARISRANGER 8002013
UTVPOLARISRANGER 800 6X62016, 2017
ATVPOLARISRanger 800 6x6 EFI2015, 2016, 2017
ATVPOLARISRanger 800 Camo or LE2013
UTVPOLARISRANGER 800 CREW2013, 2014
ATVPOLARISRanger 800 EFI2013, 2014
ATVPOLARISRanger 800 EFI EPS2013
ATVPOLARISRanger 800 EFI Midsize2013, 2014
UTVPOLARISRANGER 800 EPS2014
ATVPOLARISRanger 800 LE EFI EPS2013
ATVPOLARISRanger 800 LE EFI Midsize2013
ATVPOLARISRanger 800 LE EPS2014
ATVPOLARISRanger 800 LE Midsize EPS2014
UTVPOLARISRANGER CREW 570 4 MID2020
ATVPOLARISRanger Crew 8002013, 2014
ATVPOLARISRanger Crew 800 EPS2013
ATVPOLARISRanger Crew 800 LE EPS2013
UTVPOLARISRZR 4 8002013, 2014
ATVPOLARISRZR 4 800 LE EPS2013, 2014
UTVPOLARISRZR 8002013, 2014
ATVPOLARISRZR 800 LE2013
UTVPOLARISRZR S 8002013, 2014
ATVPOLARISRZR S8002013, 2014
ATVPOLARISRZR S800 LE2013, 2014
ATVPOLARISSportsman 800 6x6 Big Boss2012, 2013, 2014
VTTPOLARISSPORTSMAN 800 EFI2012, 2013, 2014
VTTPOLARISSPORTSMAN 800 EFI BIG BOSS 6X62012, 2013, 2014
ATVPOLARISSportsman 800 Forest 4X42012, 2013
Compatible BrandPOLARIS
Internal Diameter (mm)39.5
External Diameter (mm)106
Thickness (mm)25
Number of wires4
Number of connectors1
Number of terminals4
