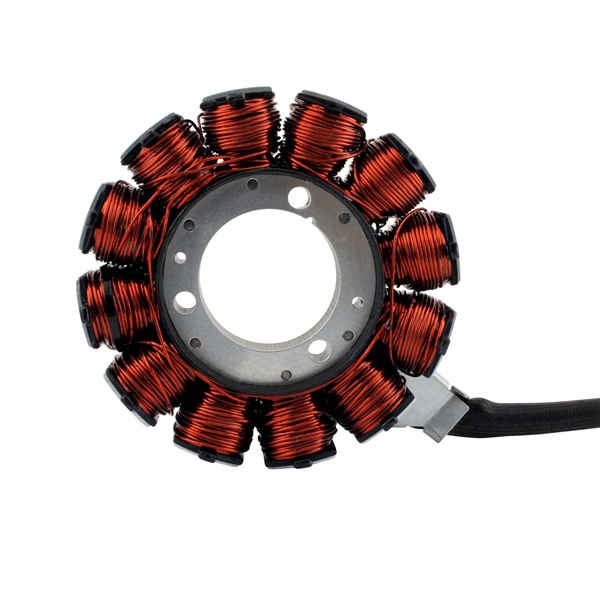

STATOR + COVER GASKET KIT C-AM

Image-1 Kimpex HD Stator and Crankcase Cover Gasket CAN-AM (BRP) - 345633 STATOR + COVER GASKET KIT C-AM RMS900-108694 RMS900-108694 KIMPEXHD
Image-1 Kimpex HD Stator and Crankcase Cover Gasket CAN-AM (BRP) - 345633 STATOR + COVER GASKET KIT C-AM RMS900-108694 RMS900-108694 KIMPEXHD Image-2 Kimpex HD Stator and Crankcase Cover Gasket CAN-AM (BRP) - 345633 STATOR + COVER GASKET KIT C-AM RMS900-108694 RMS900-108694 KIMPEXHD Image-3 Kimpex HD Stator and Crankcase Cover Gasket CAN-AM (BRP) - 345633 STATOR + COVER GASKET KIT C-AM RMS900-108694 RMS900-108694 KIMPEXHD Image-4 Kimpex HD Stator and Crankcase Cover Gasket CAN-AM (BRP) - 345633 STATOR + COVER GASKET KIT C-AM RMS900-108694 RMS900-108694 KIMPEXHD

Kimpex HD Stator and Crankcase Cover Gasket CAN-AM (BRP) - 345633 -10%

STATOR + COVER GASKET KIT C-AM

OEM #RMS900-108694

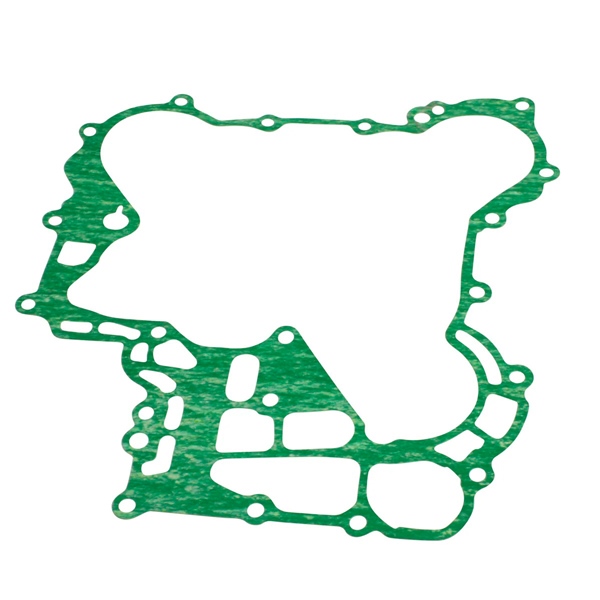

  • Stator crankcase cover gasket included
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Pick up pulsar coil included

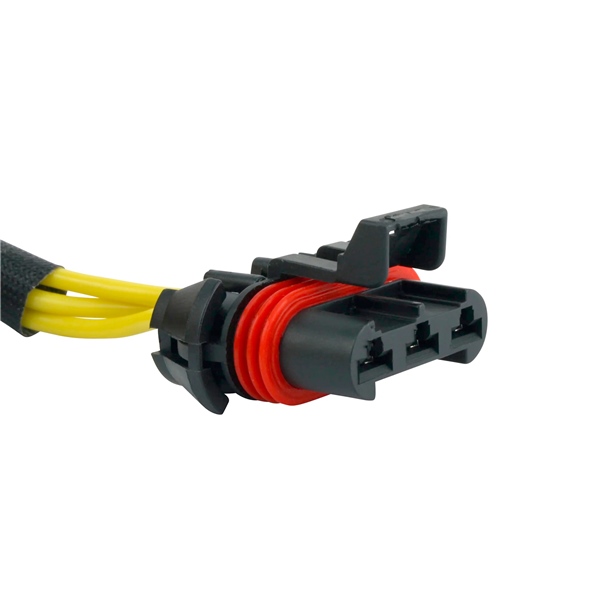

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
  • One year limited warranty

$312.99 $281.69
Warehouse Qty: 2
  • Fitment
  • Details
CategoryMakeModelYear
ATVCAN-AM (BRP)Maverick MAX X3 XDS Turbo RR2021, 2022, 2023, 2024, 2025
ATVCAN-AM (BRP)Maverick MAX X3 XMR Turbo RR2021, 2022, 2023, 2024, 2025
ATVCAN-AM (BRP)Maverick MAX X3 XRS Turbo RR2021, 2022, 2023, 2024, 2025
ATVCAN-AM (BRP)Maverick X3 XDS Turbo RR2021, 2022, 2023, 2024, 2025
ATVCAN-AM (BRP)Maverick X3 XMR Turbo RR2021, 2022, 2023
ATVCAN-AM (BRP)Maverick X3 XRC Turbo RR2021, 2022, 2023
UTVPOLARISRANGER CREW 570 4 MID2018
Compatible BrandCAN-AM (BRP)
Internal Diameter (mm)42
External Diameter (mm)115
Thickness (mm)17
Number of wires3
