STATOR/ROTOR/COIL KIT KTM KIMPEXHD

Image-1 Kimpex HD Stator, Rotor and Ignition Coil Kit GAS GAS, HUSQVARNA, KTM - 345180 STATOR/ROTOR/COIL KIT KTM KIMPEXHD RMS900-107608 RMS900-107608 KIMPEXHD
Image-1 Kimpex HD Stator, Rotor and Ignition Coil Kit GAS GAS, HUSQVARNA, KTM - 345180 STATOR/ROTOR/COIL KIT KTM KIMPEXHD RMS900-107608 RMS900-107608 KIMPEXHD Image-2 Kimpex HD Stator, Rotor and Ignition Coil Kit GAS GAS, HUSQVARNA, KTM - 345180 STATOR/ROTOR/COIL KIT KTM KIMPEXHD RMS900-107608 RMS900-107608 KIMPEXHD Image-3 Kimpex HD Stator, Rotor and Ignition Coil Kit GAS GAS, HUSQVARNA, KTM - 345180 STATOR/ROTOR/COIL KIT KTM KIMPEXHD RMS900-107608 RMS900-107608 KIMPEXHD Image-4 Kimpex HD Stator, Rotor and Ignition Coil Kit GAS GAS, HUSQVARNA, KTM - 345180 STATOR/ROTOR/COIL KIT KTM KIMPEXHD RMS900-107608 RMS900-107608 KIMPEXHD Image-5 Kimpex HD Stator, Rotor and Ignition Coil Kit GAS GAS, HUSQVARNA, KTM - 345180 STATOR/ROTOR/COIL KIT KTM KIMPEXHD RMS900-107608 RMS900-107608 KIMPEXHD

Kimpex HD Stator, Rotor and Ignition Coil Kit GAS GAS, HUSQVARNA, KTM - 345180 -10%

STATOR/ROTOR/COIL KIT KTM KIMPEXHD

OEM #RMS900-107608

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

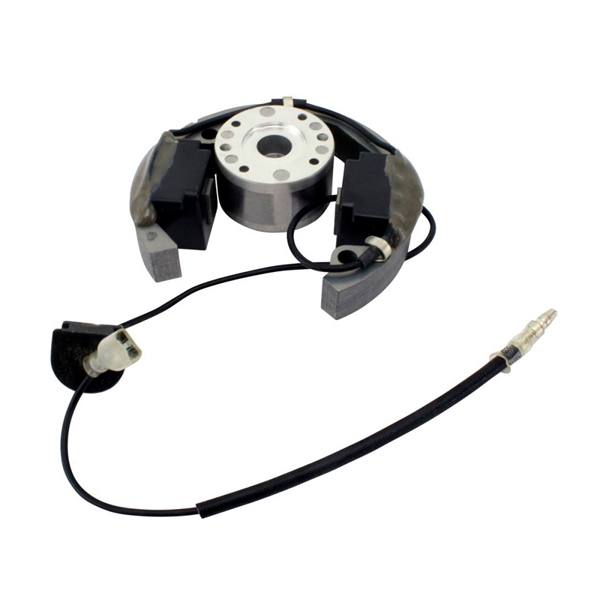

Stator:
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connector included

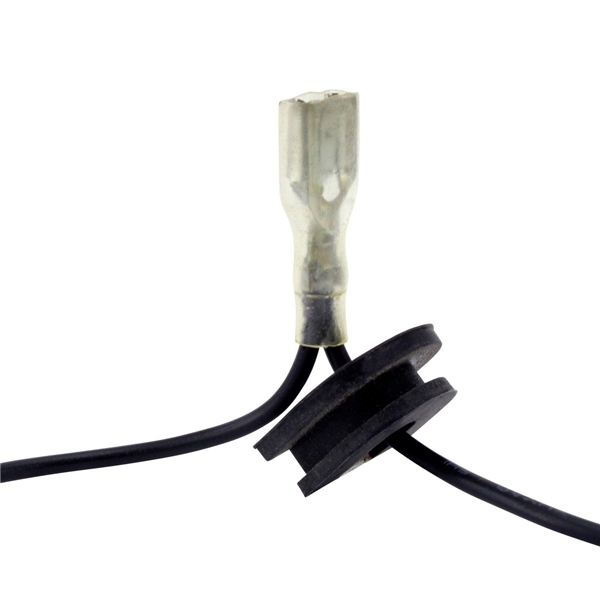

  • Rubber grommet included

SPÉCIFICATIONS

Stator Dimensions:

Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 148 mm

Other specifications:
Number of wires : 2
Number of plugs : 2

Alternator : Black to ground = 4.5 ohms +-20%

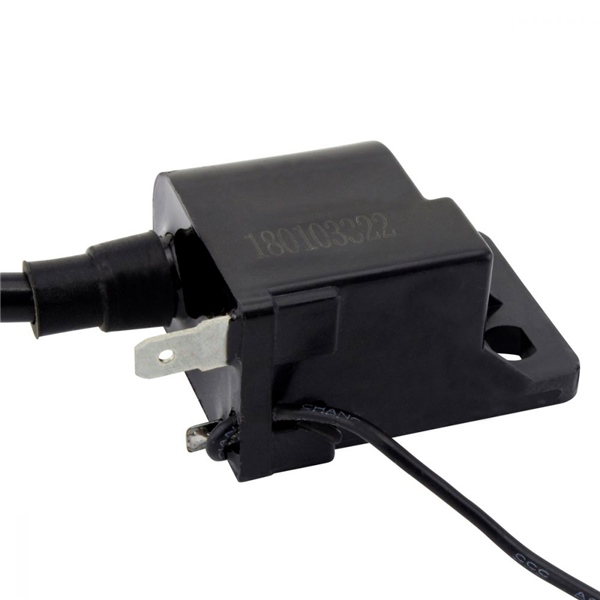

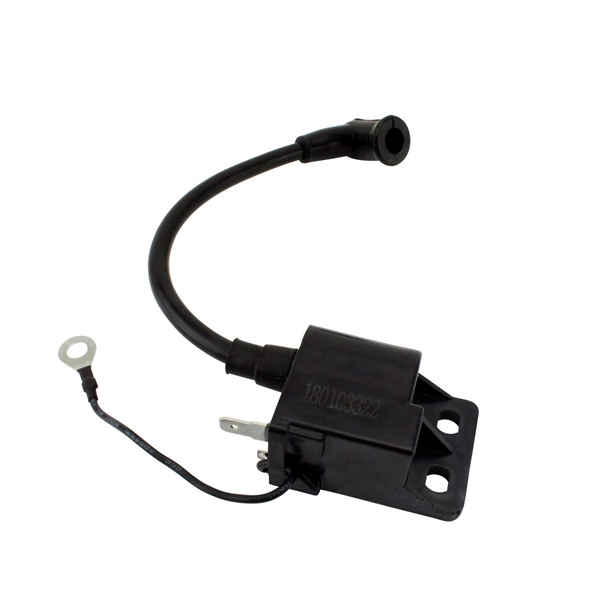

External Ignition Coil:
Distance between fixation holes: 20 mm
Wire Length: 51 mm
Resistance: 6.1 ohms


Rotor Dimensions:
Interior widest diameter : 12 mm
Interior narrowest diameter : 12 mm
Interior length : 19 mm
Exterior Diameter: 36 mm
Fixation holes center to center: 23 mm

$147.99 $133.19
Online Qty: 1
In Store Qty: 0
  • Fitment
  • Details
CategoryMakeModelYear
MotoGAS GASMC 502021, 2021, 2022, 2022, 2023, 2023
MotoHUSQVARNACR502011
MotoHUSQVARNASM502011
MotoHUSQVARNATC502017, 2018, 2019, 2020, 2021, 2022, 2023
MotoKTM50 JUNIOR ADVENTURE2002
MotoKTM50 MINI ADVENTURE2001, 2002, 2003, 2004, 2005
MotoKTM50 MINI ADVENTURE AC2006
MotoKTM50 Mini Adventure F/A2006
MotoKTM50 SENIOR ADVENTURE2002, 2004, 2005
MotoKTM50 SENIOR ADVENTURE AC2006, 2007
MotoKTM50 Senior Adventure F/A2006, 2007
MotoKTM50 SX2019, 2020, 2021, 2022, 2023
MotoKTM50 SX FACTORY2021, 2022
MotoKTM50 SX Factory Edition2021, 2022
MotoKTM50 SX JUNIOR ADVENTURE2001, 2003
MotoKTM50 SX JUNIOR L/C2006, 2007, 2008
MotoKTM50 SX MINI2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
MotoKTM50 SX MINI AIR COOLED2008
MotoKTM50 SX Mini F/A2008
MotoKTM50 SX Mini L/C2009, 2010
MotoKTM50 SX MINI LIQUID COOLED2009, 2010
MotoKTM50 SX Pro JR L/C2004, 2005
MotoKTM50 SX PRO JUNIOR L/C2002, 2003, 2004, 2005
MotoKTM50 SX PRO SENIOR L/C2002, 2003
MotoKTM50 SX Pro SR L/C2004, 2005
MotoKTM50 SX PRO SR LIQUID2004, 2005
MotoKTM50 SX SENIOR ADVENTURE2001, 2003
MotoKTM50 SX Senior L/C2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
MotoKTM50 SXR PRO SR LIQUID2001
MotoKTM50 SXS2012, 2013
VTTPOLARISSPORTSMAN 850 TOURING SP EPS2019
Compatible BrandGAS GAS
Compatible BrandHUSQVARNA
Compatible BrandKTM
Number of wires2
Number of connectors2
