STATOR W/LIGHTING COIL/REGULATOR HON

Image-1 Kimpex HD Lighting Stator & Voltage Regulator Kit HONDA - 345098 STATOR W/LIGHTING COIL/REGULATOR HON RMS900-106771 RMS900-106771 KIMPEXHD
Image-1 Kimpex HD Lighting Stator & Voltage Regulator Kit HONDA - 345098 STATOR W/LIGHTING COIL/REGULATOR HON RMS900-106771 RMS900-106771 KIMPEXHD Image-2 Kimpex HD Lighting Stator & Voltage Regulator Kit HONDA - 345098 STATOR W/LIGHTING COIL/REGULATOR HON RMS900-106771 RMS900-106771 KIMPEXHD Image-3 Kimpex HD Lighting Stator & Voltage Regulator Kit HONDA - 345098 STATOR W/LIGHTING COIL/REGULATOR HON RMS900-106771 RMS900-106771 KIMPEXHD

Kimpex HD Lighting Stator & Voltage Regulator Kit HONDA - 345098 -10%

STATOR W/LIGHTING COIL/REGULATOR HON

OEM #RMS900-106771

Kit Lighting Stator + AC Voltage Regulator Rectifier

    All products shipped are tested

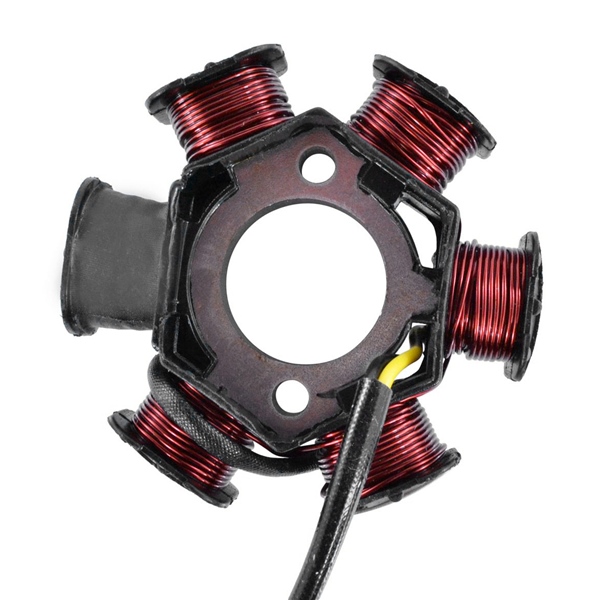

Stator
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Rubber grommet included

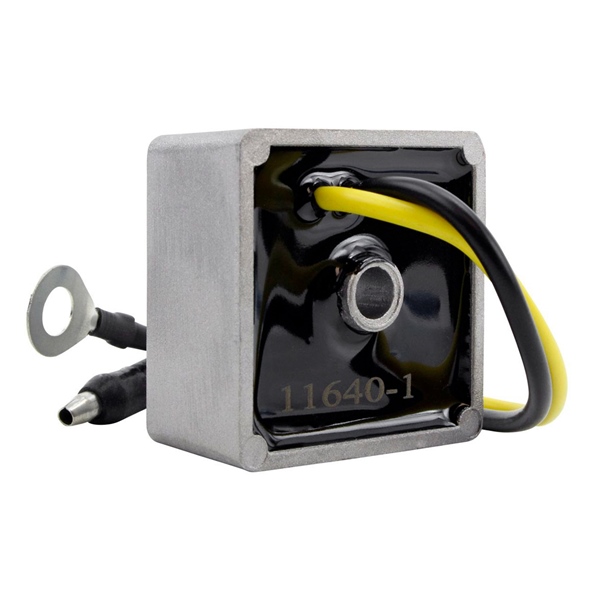

Heavy Duty AC Voltage Regulator Rectifier
  • 12 Volts regulator used by Baja winners
  • Heavy duty and improved regulator rectifier
  • For use with all standard halogen and quartz lights
  • Precise voltage control, eliminates light burnout
  • Reduce flickering and dimming
  • Simple installation
  • Works with all other OEM part
  • Rated at 225 watts
Veuillez noter: The OEM stator did not include a lighting coil because no lights come on the bike. If you would like to add a headlight and/or taillight, our stator includes a 100 Watt lighting coil between the Yellow wire and ground. The Black wire from the regulator needs to be grounded to the frame, and the Yellow wire is connected to the Yellow wire from the stator and also to your lights (the other side of your lights are grounded to the frame to complete the circuit). A new regulator must be used to support the lighting..

Veuillez noter: the body is different than the OEM (fix it with only one screw instead of two), but it works on the same models.

Veuillez noter: this regulator has two wires, yellow to power and black to ground.

$220.99 $198.89
Online Qty: 2
In Store Qty: 0
  • Fitment
  • Details
CategoryMakeModelYear
MotoHONDACRF100F2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013
MotoHONDACRF80F2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013
MotoHONDAXR100R1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
MotoHONDAXR80R1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
VTTPOLARISSPORTSMAN 5702015
Compatible BrandHONDA
Internal Diameter (mm)30
External Diameter (mm)85
Thickness (mm)32
Number of wires3
Number of terminals3
