Kimpex HD Stator High Output Kit, AC Voltage Regulator HONDA - 345073 -10%

STATOR HP KIT/ REGULATOR HON

OEM #RMS900-103448

Our new lighting generator kit allows you to install the headlight & tail light of your choice on your TRX90. And with 90W of output, our generator delivers!

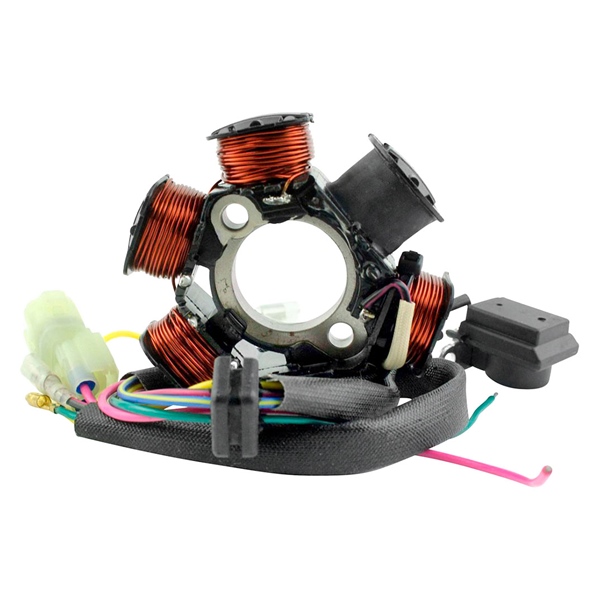

High Output Stator :

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 83 mm
Thickness : 8 mm
Length of wires stator to grommet : 75 mm
Length of wires grommet to plug : 260 mm
Length of pickup coil's wire to grommet : 150 mm

Other specifications :
Number of wires : 5
Number of plugs : 5
Number of pins : 5

Wire to wire resistance :
Alternator : Ground to Yellow = 0.4 ohms +/-20%
Pickup : Blue/Yellow to Ground = 150 ohms +/-20%
Source : Black/Red to Green = 500 ohms +/-20%

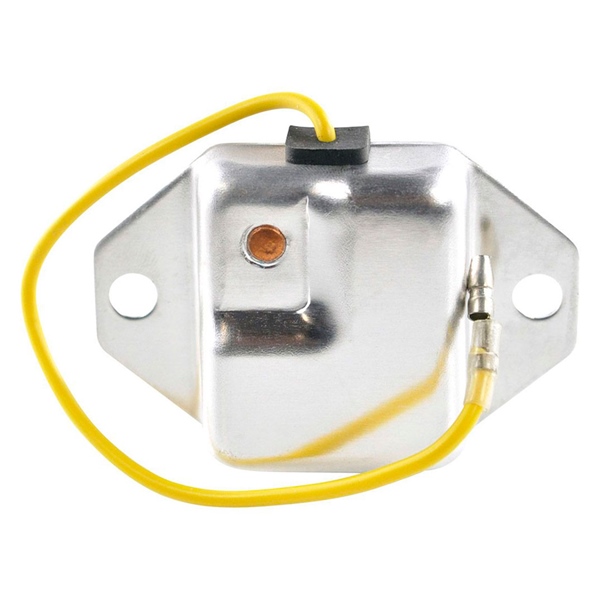

AC regulator :

Dimensions :
Width : 15 mm
Height : 48 mm
Fixation holes center to center : 60 mm

Other specifications :
Number of plugs : 0
Number of pins : 1
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 25 A - 35 A / 300 W - 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Included in the kit:
Heavy duty enhanced stator
500W rated AC voltage regulator
Dielectric connector grease
Complete installation instructions
