Kimpex HD Stator, Flywheel, Puller, AC/DC Ignition Conversion Kit 4.1" - 345070 -10%

STATOR KIT/FLYWHEEL/PULLER/CONVERSION

OEM #RMS900-102833

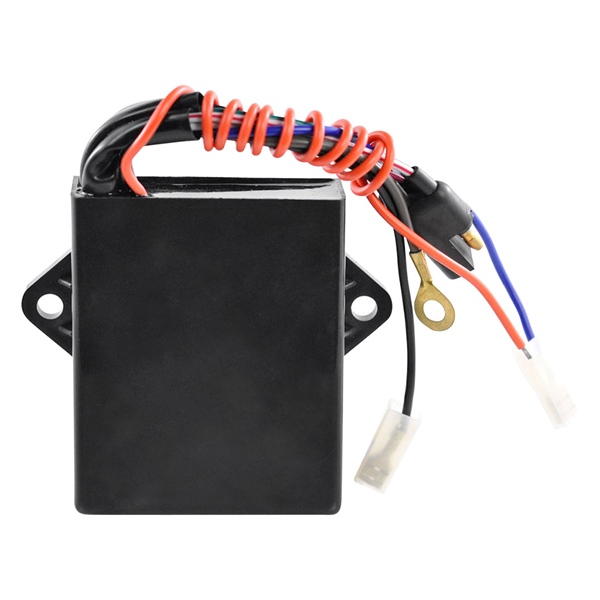

This kit includes: a Generator Stator, a Flywheel, a Puller, an AC to DC Ignition Conversion Kit.

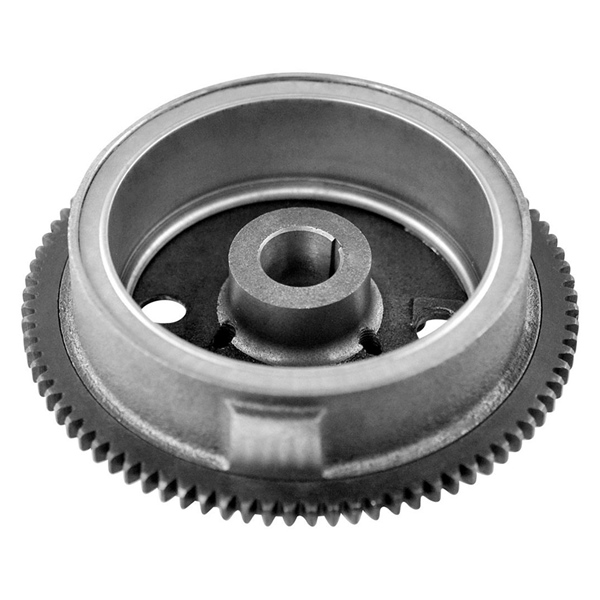

Flywheel

Dimensions:

  • Exterior Diameter: 141 mm
  • Interior Diameter: 117 mm
  • Interior Diameter Center Housing: 25 mm
  • Exterior Diameter Center Housing: 23 mm

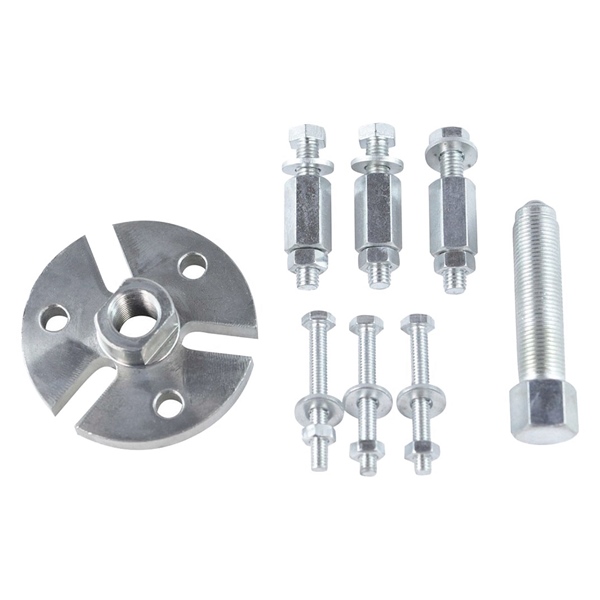

    • Flywheel Pullerr

  • Main Base Diameter: 105 mm (4.1"")
  • Thickness: 12mm (0.5"")


    • SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler

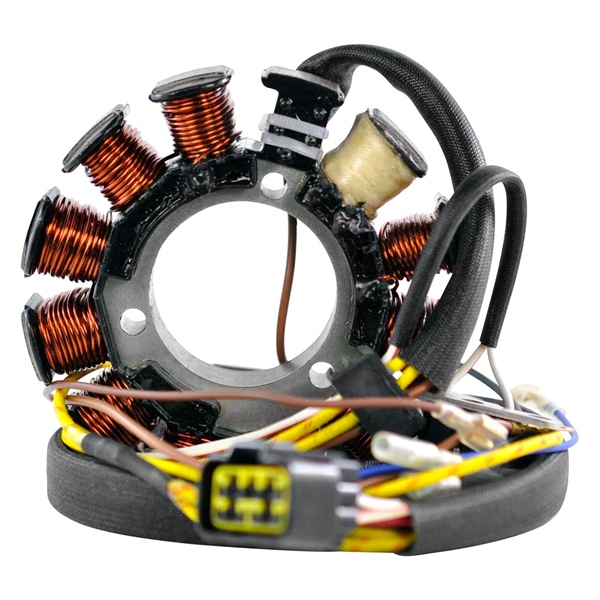

    Generator Stator

    Dimensions :
  • Interior diameter : 47 mm / 48mm
  • Exterior diameter : 114 mm / 115mm
  • Thickness : 20 mm
  • Length of wires stator to grommet : 155 mm / 135mm
  • Length of wires grommet to plug : 900 mm / 1200mm
  • Length of pickup coil's wire to grommet : 60 mm / 120mm

    Other specifications :
    Number of wires : 7
    Number of plugs : 9 / 6
    Number of pins : 12 / 8

    Wire to wire resistance :
    Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
    Pickup : White/Red to Red = 115 ohms +/-20%
    Source : Black to Red = 18 ohms +/-20%

    SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum

    Stator

    Dimensions :
  • Interior diameter : 51 mm
  • Exterior diameter : 114 mm
  • Thickness : 20 mm

    Other specifications :
    Number of wires : 9
    Number of plugs : 7
    Number of pins : 10

    Wire to wire resistance:
    Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
    Pickup: White to White/Red = 100 ohms =+/-20%

    Source Green to Red/Black = 450 ohms =+/-20%
    Source 2: Green to Black = 3.8 ohms =+/-20%

    $864.99 $778.49
    • Warehouse Qty: 6
    • Fitment
    • Details
    CategoryMakeModelYear
    ATVPOLARISMagnum 500 2x42002
    ATVPOLARISMagnum 500 4x42003
    ATVPOLARISRanger 500 4x42003
    ATVPOLARISScrambler 500 2x42002
    ATVPOLARISScrambler 500 4X42002
    ATVPOLARISSportsman 500 6x62002
    Diameter4.1"
    External Diameter (mm)141
    Internal Diameter (mm)117
    External Thickness (mm)
    Internal Thickness (mm)
