Kimpex HD Stator, Flywheel, Puller, AC/DC Ignition Conversion Kit 4.1" - 345069 -10%

STATOR KIT/FLYWHEEL/PULLER/CONVERSION

OEM #RMS900-102832

This kit includes: a Generator Stator, a Flywheel, a Puller, an AC to DC Ignition Conversion Kit.

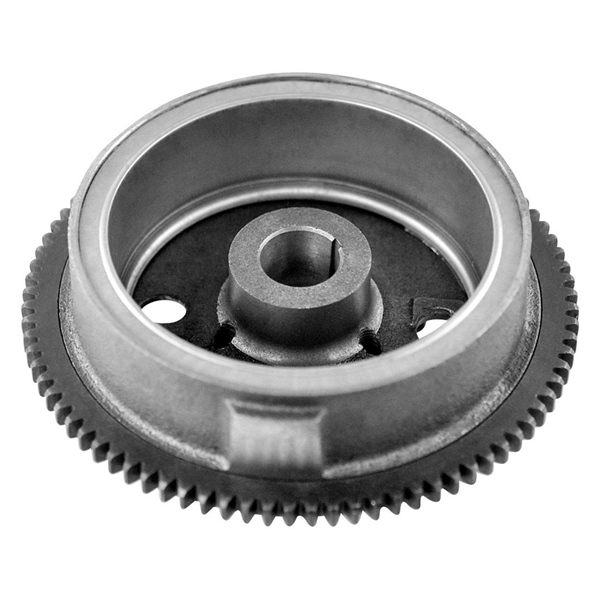

Flywheel

Dimensions:

Exterior Diameter: 141 mm

Interior Diameter: 117 mm

Interior Diameter Center Housing: 25 mm

Exterior Diameter Center Housing: 23 mm

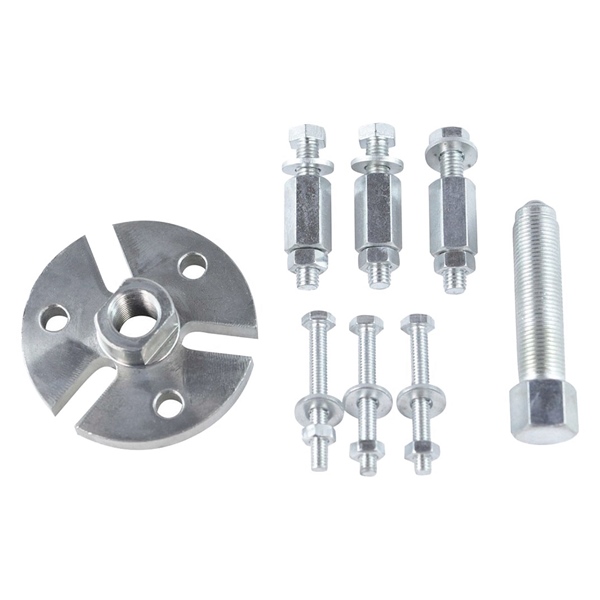

Flywheel Pullerr

Main Base Diameter: 105 mm (4.1"")

Thickness: 12mm (0.5"")

SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler

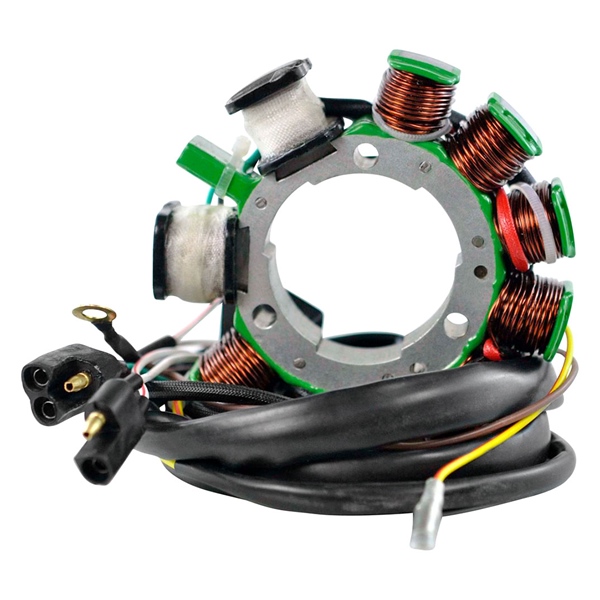

Generator Stator

Dimensions :

Interior diameter : 47 mm / 48mm

Exterior diameter : 114 mm / 115mm

Thickness : 20 mm

Length of wires stator to grommet : 155 mm / 135mm

Length of wires grommet to plug : 900 mm / 1200mm

Length of pickup coil's wire to grommet : 60 mm / 120mm

Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8

Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%

SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum

Stator

Dimensions :

Interior diameter : 51 mm

Exterior diameter : 114 mm

Thickness : 20 mm

Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10

Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%

Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%

$841.99 $757.79

Warehouse Qty: 5

Fitment
Details

Category	Make	Model	Year
ATV	POLARIS	Big Boss 500 6X6	1998, 1999
ATV	POLARIS	Magnum 500 4x4	1999, 2000
ATV	POLARIS	Ranger 500 6x6	1999
ATV	POLARIS	Scrambler 500 4X4	1997, 1998, 1999, 2000
ATV	POLARIS	Sportsman 500 4x4	1998, 1999, 2000
ATV	POLARIS	Sportsman 500 6x6	2001
ATV	POLARIS	Worker 500	1999

Diameter	4.1"
External Diameter (mm)	141
Internal Diameter (mm)	117
External Thickness (mm)
Internal Thickness (mm)
