REGULATOR ALU & BYPASS HARNESS KIMPEXHD

Kimpex HD Machined Aluminum Series Regulator and Bypass Harness ARCTIC CAT, TRIUMPH - 345393 -10%

REGULATOR ALU & BYPASS HARNESS KIMPEXHD

OEM #RMS022-108468

BENEFITS OF SERIES VOLTAGE REGULATORS
SERIES regulators run much cooler than the Shunt and MOSFET voltage regulator rectifier and way much cooler than OEM parts.

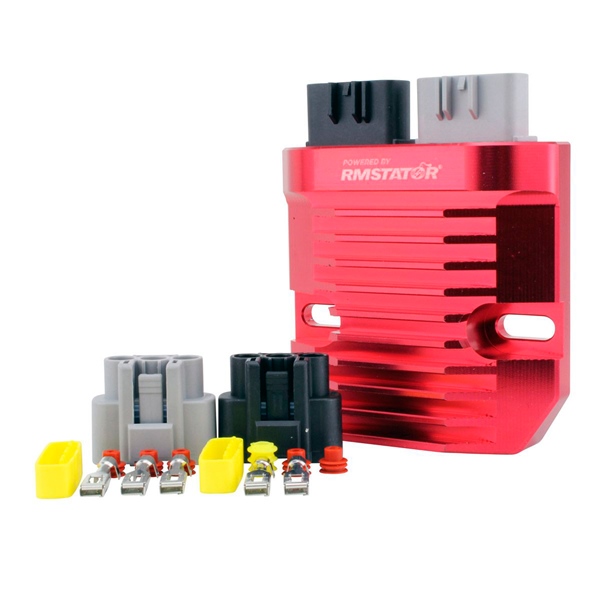

Moreover, the regulator has our new machined billet aluminum casing which dissipate heat 33% better than standard molded casing.

Power only flows through the electrical components when the battery is charging.

Allows the stator to have lower current flowing when not used, extending its lifetime.

ABOUT THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators.

A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.

This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

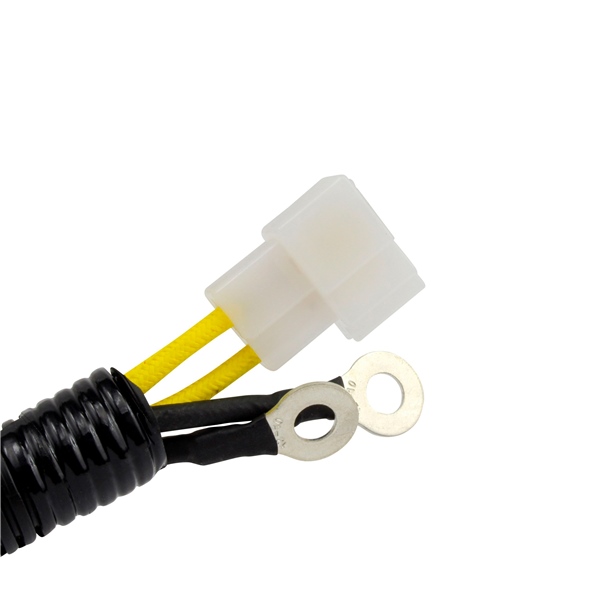

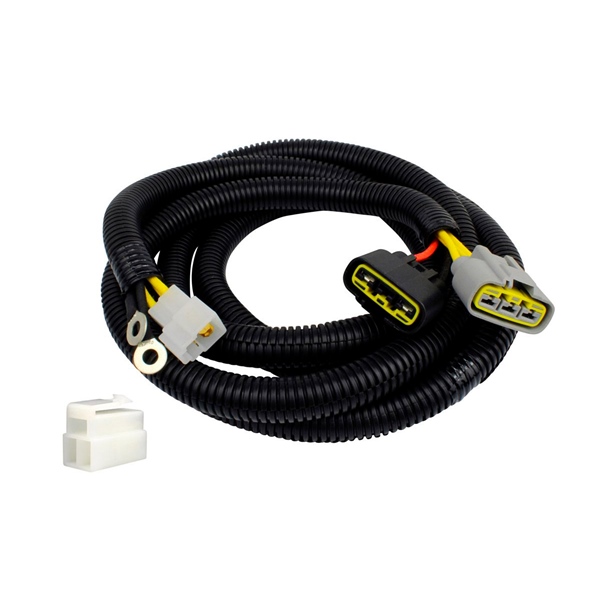

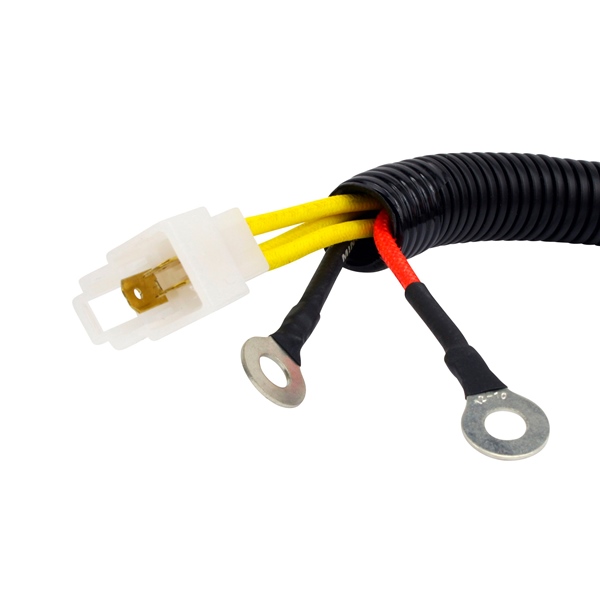

Improved Heavy Duty Bypass Harness
Automotive grade wiring harness with OEM-quality heavy-duty connectors

Made with the same connectors as OEM parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.
