REGULATOR ALU + ECM HARNESS POL

Image-1 Kimpex HD Aluminum Regulator and SurePower ECM Bypass Harness POLARIS - 345351 REGULATOR ALU + ECM HARNESS POL RMS022-108420 RMS022-108420 KIMPEXHD
Image-1 Kimpex HD Aluminum Regulator and SurePower ECM Bypass Harness POLARIS - 345351 REGULATOR ALU + ECM HARNESS POL RMS022-108420 RMS022-108420 KIMPEXHD Image-2 Kimpex HD Aluminum Regulator and SurePower ECM Bypass Harness POLARIS - 345351 REGULATOR ALU + ECM HARNESS POL RMS022-108420 RMS022-108420 KIMPEXHD Image-3 Kimpex HD Aluminum Regulator and SurePower ECM Bypass Harness POLARIS - 345351 REGULATOR ALU + ECM HARNESS POL RMS022-108420 RMS022-108420 KIMPEXHD Image-4 Kimpex HD Aluminum Regulator and SurePower ECM Bypass Harness POLARIS - 345351 REGULATOR ALU + ECM HARNESS POL RMS022-108420 RMS022-108420 KIMPEXHD Image-5 Kimpex HD Aluminum Regulator and SurePower ECM Bypass Harness POLARIS - 345351 REGULATOR ALU + ECM HARNESS POL RMS022-108420 RMS022-108420 KIMPEXHD

Kimpex HD Aluminum Regulator and SurePower ECM Bypass Harness POLARIS - 345351 -10%

REGULATOR ALU + ECM HARNESS POL

OEM #RMS022-108420

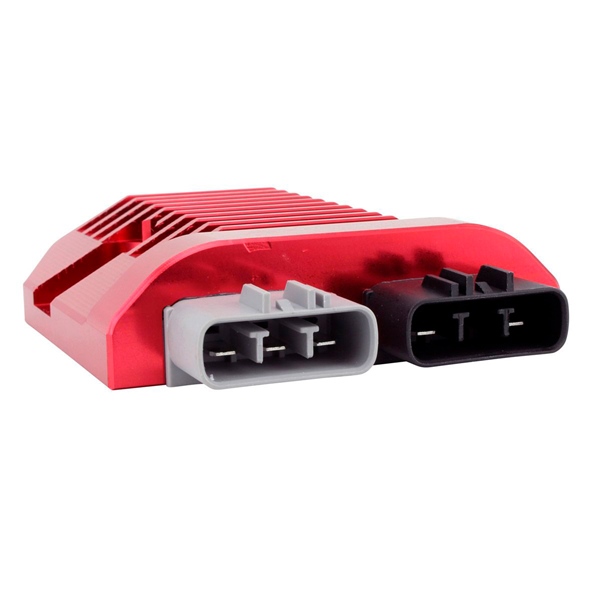

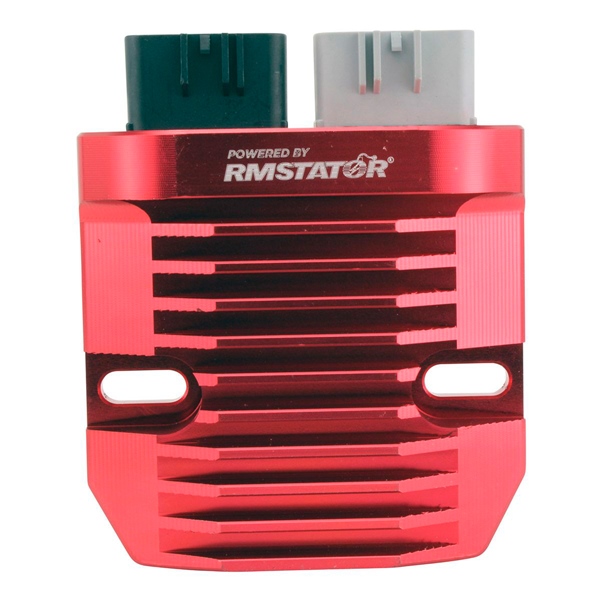

This replacement kit is only meant to the bypass the internal voltage regulator on Polaris ATV/UTVs that use the large silver SurePower ECM module with 2 large wiring connectors on opposite sides of the unit. Please confirm your OEM part number on your unit matches the list below.

Replaces these OEM Numbers :

  • 4011089
  • 4011090
  • 4011598
  • 4011375
  • 4011657
  • 4011226
  • 4011517
  • 4011240

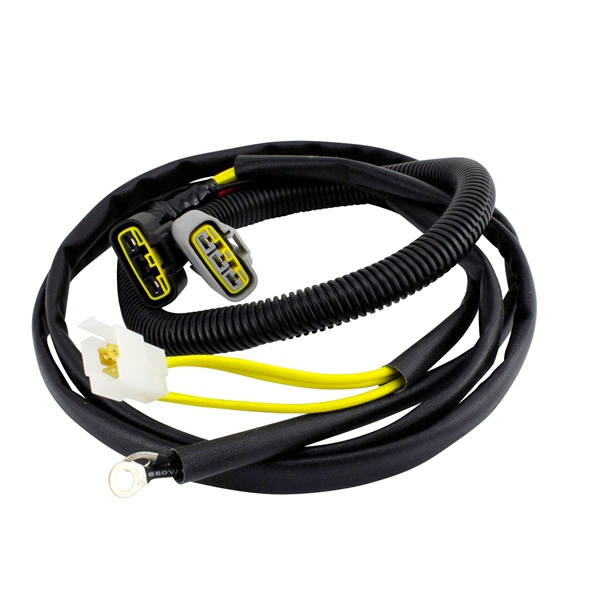

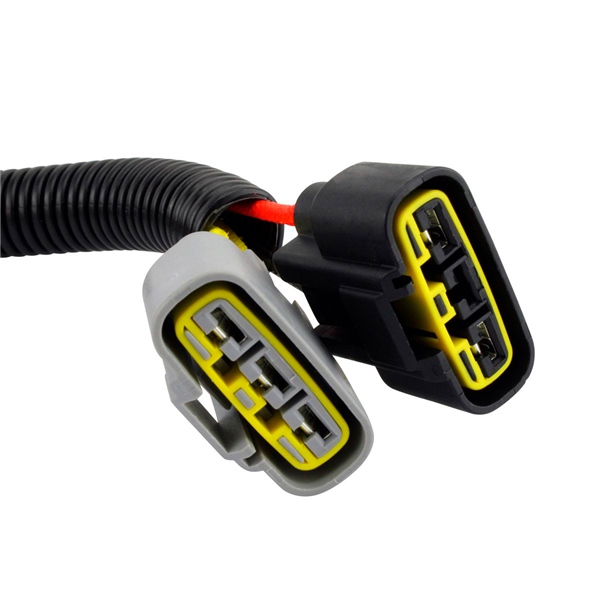

We include the opposite connector (main harness side) as we know these are often melted / corroded / defective. Defective connectors are a major cause for repetitive electrical issues.
  • Operation Temperature : -20° à 85°
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

$251.99 $226.79
Warehouse Qty: 5
  • Fitment
  • Details
CategoryMakeModelYear
UTVPOLARISRANGER 500 2X42005, 2006, 2007, 2008, 2009
UTVPOLARISRANGER 500 4X42005, 2006, 2007
ATVPOLARISRanger 500 4x4 EFI2006, 2007
UTVPOLARISRANGER 500 6X62005
UTVPOLARISRANGER 500 EFI 4X42006, 2007
ATVPOLARISRanger 700 6x6 EFI2006
UTVPOLARISRANGER 700 EFI 6X62006
ATVPOLARISRanger 700 XP2005
ATVPOLARISRanger 700 XP EFI2006
ATVPOLARISRanger 700 XP EFI Browning Edition2006
ATVPOLARISRanger 700 XP EFI Graphite Flame2006
UTVPOLARISRANGER XP 7002005, 2006
VTTPOLARISSPORTSMAN 4502007
ATVPOLARISSportsman 450 4x42007
VTTPOLARISSPORTSMAN 500 6X62007, 2008
VTTPOLARISSPORTSMAN 500 EFI2006, 2007
ATVPOLARISSportsman 500 EFI Browning Edition2006
ATVPOLARISSportsman 500 EFI deluxe2007
VTTPOLARISSPORTSMAN 500 HO2008
VTTPOLARISSPORTSMAN 500 X22006, 2007
ATVPOLARISSportsman 500 X2 EFI2006, 2007
ATVPOLARISSportsman 500 X2 EFI Deluxe2007
Width (mm)103
Length (mm)103
Height (mm)28
Number of connectors2
Number of terminals5
MM between fixation holes80
Compatible BrandPOLARIS
