VOLTAGE REGULATOR INDIAN/POL KIMPEXHD

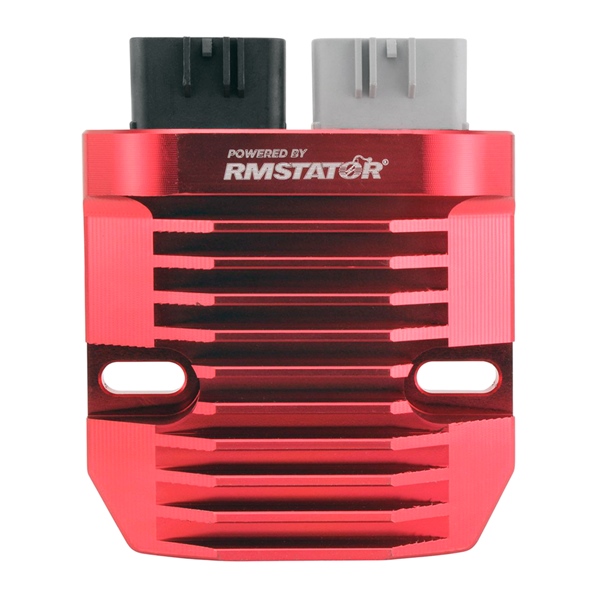

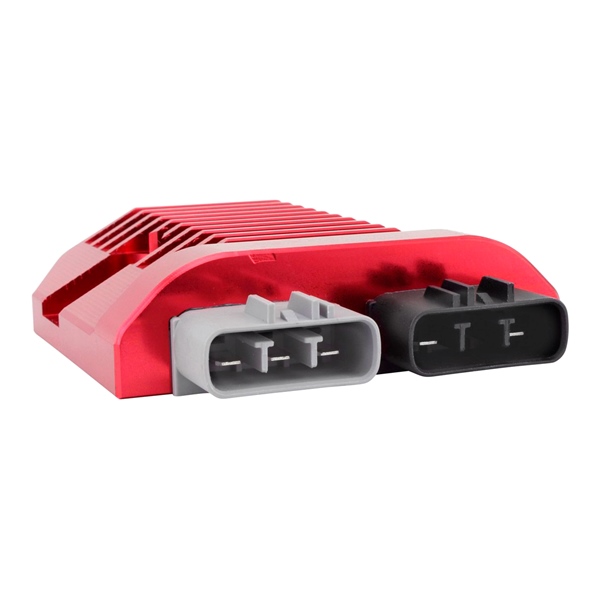

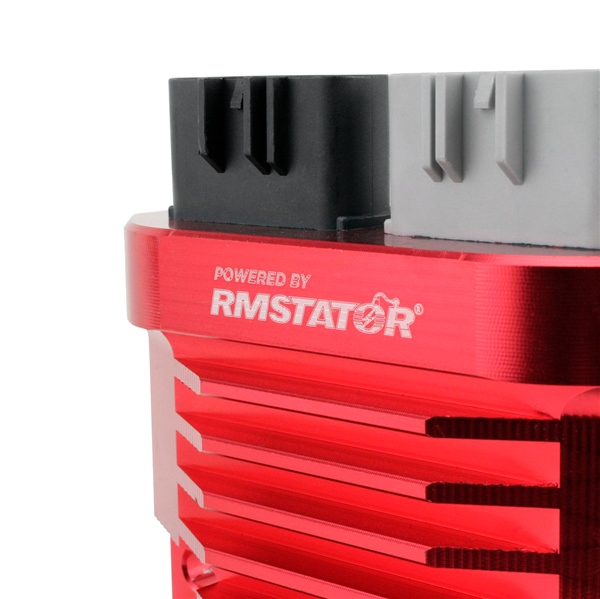

Image-1 Kimpex HD Series Regulator CAN-AM (BRP), INDIAN, POLARIS, VICTORY - 345061 VOLTAGE REGULATOR INDIAN/POL KIMPEXHD RMS022-106799 RMS022-106799 KIMPEXHD
Image-1 Kimpex HD Series Regulator CAN-AM (BRP), INDIAN, POLARIS, VICTORY - 345061 VOLTAGE REGULATOR INDIAN/POL KIMPEXHD RMS022-106799 RMS022-106799 KIMPEXHD Image-2 Kimpex HD Series Regulator CAN-AM (BRP), INDIAN, POLARIS, VICTORY - 345061 VOLTAGE REGULATOR INDIAN/POL KIMPEXHD RMS022-106799 RMS022-106799 KIMPEXHD Image-3 Kimpex HD Series Regulator CAN-AM (BRP), INDIAN, POLARIS, VICTORY - 345061 VOLTAGE REGULATOR INDIAN/POL KIMPEXHD RMS022-106799 RMS022-106799 KIMPEXHD Image-4 Kimpex HD Series Regulator CAN-AM (BRP), INDIAN, POLARIS, VICTORY - 345061 VOLTAGE REGULATOR INDIAN/POL KIMPEXHD RMS022-106799 RMS022-106799 KIMPEXHD

Kimpex HD Series Regulator CAN-AM (BRP), INDIAN, POLARIS, VICTORY - 345061 -10%

VOLTAGE REGULATOR INDIAN/POL KIMPEXHD

OEM #RMS022-106799

Why use series enhanced technology?

  • Runs much cooler than the Shunt and Mosfet voltage regulator rectifier.
  • Power only flows through the electrical components when the battery is charging.
  • Allows the stator to have lower current flowing when not used, extending its lifetime.
  • The regulator is easier to mount because it’s smaller than the OEM one.

With enhanced technology design

This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.

The Series Voltage Regulation technology

Our Series voltage regulator brings better reliability and charging system performance.
A Series regulator is a significant upgrade over typical shunt type voltage regulators.
A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery.
Series regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely.
This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

Series Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested
  • We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
  • All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

$221.99 $199.79
Warehouse Qty: 5
  • Fitment
  • Details
CategoryMakeModelYear
ATVCAN-AM (BRP)Outlander 4002006, 2007
ATVCAN-AM (BRP)Outlander MAX 4002006, 2007
MotoINDIANFTR 12002019, 2020
MotoINDIANFTR 1200 ABS2019, 2020
MotoINDIANFTR 1200 R Carbon2023
MotoINDIANFTR 1200S ABS2019, 2020
MotoINDIANSCOUT2015, 2016, 2017, 2018, 2019, 2020, 2021
MotoINDIANScout Anniversary2020
MotoINDIANSCOUT BOBBER2018, 2020, 2021
MotoINDIANScout Bobber Sixty2021
MotoINDIANScout Bobber Twenty2020, 2021
MotoINDIANSCOUT SIXTY2016, 2017, 2018, 2019, 2020, 2021
ATVPOLARISACE 150 EFI2017, 2018, 2019, 2020, 2021
ATVPOLARISM14002015
ATVPOLARISRanger 10002020, 2021, 2022
ATVPOLARISRanger 1000 EPS2020, 2021, 2022
ATVPOLARISRanger 1000 EPS Premium2020, 2021, 2022
ATVPOLARISRanger 150 EFI2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
ATVPOLARISRanger 325 ETX2015
ATVPOLARISRanger 570 Full Size2015
ATVPOLARISRanger 570 Full Size EPS2015
ATVPOLARISRanger 570 LE EPS2014, 2015
ATVPOLARISRanger 570 Midsize2014, 2015
ATVPOLARISRanger 570 Midsize EPS2015
ATVPOLARISRanger 800 6x6 EFI2015, 2016, 2017
ATVPOLARISRanger 800 Camo or LE2013
ATVPOLARISRanger 800 EFI2013, 2014
ATVPOLARISRanger 800 EFI EPS2013
ATVPOLARISRanger 800 EFI Midsize2013, 2014
ATVPOLARISRanger 800 HD EPS2011, 2012
ATVPOLARISRanger 800 LE EFI EPS2013
ATVPOLARISRanger 800 LE EFI Midsize2013
ATVPOLARISRanger 800 LE EPS2014
ATVPOLARISRanger 800 LE Midsize EPS2014
ATVPOLARISRanger 800 XP2011, 2012
ATVPOLARISRanger 800 XP EFI Browning Edition2011
ATVPOLARISRanger 800 XP EPS2011, 2012
ATVPOLARISRanger 800 XP LE2011, 2012
ATVPOLARISRanger 800 XP LE EPS2011, 2012
ATVPOLARISRanger 800 XP LE EPS Browning2012
ATVPOLARISRanger 800 XP LE Walker Evans2012
ATVPOLARISRanger Crew 10002022
ATVPOLARISRanger Crew 1000 Premium EPS2022
ATVPOLARISRanger Crew 1000 XP NorthStar Premium EPS2020
ATVPOLARISRanger Crew 5702014, 2015
ATVPOLARISRanger Crew 570 EPS2015
ATVPOLARISRanger Crew 570 Full-Size2015
ATVPOLARISRanger Crew 570 Full-Size EPS2015
ATVPOLARISRanger Crew 570 LE2014
ATVPOLARISRanger Crew 570-42016, 2017, 2018
ATVPOLARISRanger Crew 570-4 EPS2016, 2017, 2018
ATVPOLARISRanger Crew 570-62016, 2017, 2018
ATVPOLARISRanger Crew 570-6 EPS2016
ATVPOLARISRanger Crew 8002011, 2012, 2013, 2014
ATVPOLARISRanger Crew 800 EPS2011, 2012, 2013
ATVPOLARISRanger Crew 800 LE EPS2011, 2012, 2013
ATVPOLARISRanger Crew XP 1000 EPS2019
ATVPOLARISRanger Crew XP 1000 High Lifter EPS2019, 2020, 2021, 2022
ATVPOLARISRanger Crew XP 1000 NorthStar EPS2019, 2021
ATVPOLARISRanger Crew XP 1000 NorthStar Premium EPS2022
ATVPOLARISRanger Crew XP 1000 NorthStar Trail Boss EPS2021, 2022, 2023
ATVPOLARISRanger Crew XP 1000 NorthStar Ultimate EPS2021, 2022, 2023
ATVPOLARISRanger Crew XP 1000 Premium EPS2019, 2020, 2021, 2022, 2023
ATVPOLARISRanger Crew XP 1000 Texas Edition EPS2022
ATVPOLARISRanger Crew XP 1000 Trail Boss EPS2022
ATVPOLARISRanger XP 1000 Back Country2019
ATVPOLARISRanger XP 1000 Big Game Edition2022
ATVPOLARISRanger XP 1000 EPS2019, 2021
ATVPOLARISRanger XP 1000 High Lifter EPS2019, 2020, 2021, 2022
ATVPOLARISRanger XP 1000 Mud High Lifter EPS2019
ATVPOLARISRanger XP 1000 NorthStar Edition Trail Boss EPS2021, 2022
ATVPOLARISRanger XP 1000 NorthStar Edition Ultimate2022
ATVPOLARISRanger XP 1000 NorthStar EPS2019, 2020
ATVPOLARISRanger XP 1000 NorthStar Premium EPS2020, 2021, 2022
ATVPOLARISRanger XP 1000 NorthStar Ultimate EPS2020, 2021
ATVPOLARISRanger XP 1000 Premium EPS2019, 2020, 2021, 2022
ATVPOLARISRanger XP 1000 Texas Edition EPS2020, 2021
ATVPOLARISRanger XP 1000 Trail Boss EPS2021, 2022
ATVPOLARISRanger XP 1000 Waterfowl Edition2022
ATVPOLARISRZR 4 8002012, 2013
ATVPOLARISRZR 4 800 LE EPS2011, 2013, 2014
ATVPOLARISRZR 4 800 LE Robby Gordon EPS2012
ATVPOLARISRZR 4 800 Robby Gordon EPS2011, 2012
ATVPOLARISRZR 5702013, 2014, 2015, 2016
ATVPOLARISRZR 570 LE EPS2013, 2014
ATVPOLARISRZR 8002011, 2012, 2013, 2014
ATVPOLARISRZR 800 LE2011, 2013
ATVPOLARISRZR PRO XP2020
ATVPOLARISRZR PRO XP LE2020
ATVPOLARISRZR PRO XP 42020
ATVPOLARISRZR Pro XP 4 LE2020
ATVPOLARISRZR PRO XP 4 Premium EFI2020, 2021
ATVPOLARISRZR PRO XP 4 Sport EFI2021
ATVPOLARISRZR Pro XP 4 Sport Rockford Fosgate LE2021
ATVPOLARISRZR PRO XP 4 Ultimate EFI2020, 2021
ATVPOLARISRZR Pro XP 4 Ultimate Rockford Fosgate LE2021
ATVPOLARISRZR PRO XP Premium EFI2020, 2021
ATVPOLARISRZR PRO XP Sport EFI2021
ATVPOLARISRZR PRO XP Ultimate EFI2020, 2021
ATVPOLARISRZR S8002011, 2012, 2013, 2014
ATVPOLARISRZR S800 LE2011, 2012, 2013, 2014
ATVPOLARISRZR Turbo S EPS2021
ATVPOLARISRZR XP 1000 EPS Trail and Rock2021
ATVPOLARISRZR XP 1000 High Lifter EPS2021
ATVPOLARISRZR XP 1000 Premium EPS2021
ATVPOLARISRZR XP 1000 Sport EPS2021
ATVPOLARISRZR XP 4 1000 EPS2019
ATVPOLARISRZR XP 4 1000 High Lifter EPS2019
ATVPOLARISRZR XP 4 Turbo EPS2018, 2019, 2020
ATVPOLARISRZR XP 4 Turbo S EPS2020
ATVPOLARISRZR XP 4 Turbo S EPS Velocity2020
ATVPOLARISRZR XP Turbo EPS2018, 2019, 2020
ATVPOLARISRZR XP Turbo EPS DYNAMIX2018, 2019
ATVPOLARISRZR XP Turbo EPS Fox Edition2018
ATVPOLARISRZR XP Turbo EPS LE2019
MotoVICTORYOctane2017
Width (mm)103
Length (mm)103
Height (mm)28
Number of wires
Number of connectors2
Number of terminals5
MM between fixation holes80
Compatible BrandCAN-AM (BRP)
Compatible BrandINDIAN
Compatible BrandPOLARIS
Compatible BrandVICTORY
SpecificationsNone
