STATOR HON KIMPEXHD

Image-1 Kimpex HD Stator HONDA - 345620 STATOR HON KIMPEXHD RMS010-108798 RMS010-108798 KIMPEXHD
Image-1 Kimpex HD Stator HONDA - 345620 STATOR HON KIMPEXHD RMS010-108798 RMS010-108798 KIMPEXHD Image-2 Kimpex HD Stator HONDA - 345620 STATOR HON KIMPEXHD RMS010-108798 RMS010-108798 KIMPEXHD

Kimpex HD Stator HONDA - 345620 -10%

STATOR HON KIMPEXHD

OEM #RMS010-108798

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

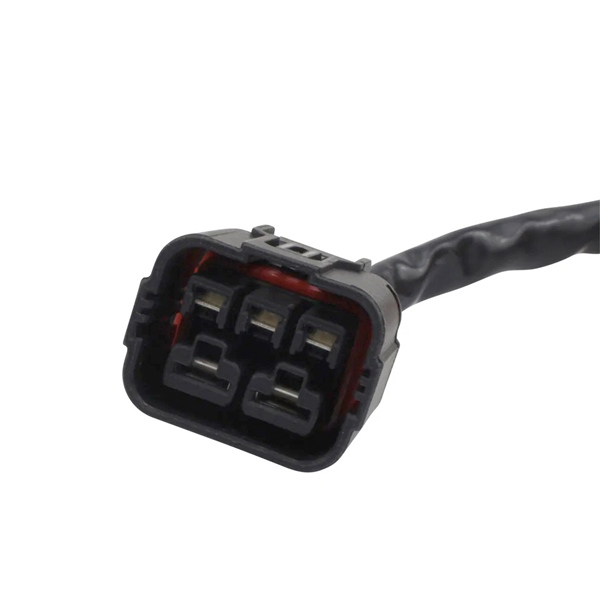

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$189.99 $170.99
Warehouse Qty: 2
  • Fitment
  • Details
CategoryMakeModelYear
ATVHONDAMUV700 Big Red2009, 2010, 2011, 2012, 2013
Compatible BrandHONDA
Internal Diameter (mm)54
External Diameter (mm)119
Thickness (mm)20
Number of wires5
Number of connectors1
Number of terminals5
