STATOR YAM KIMPEXHD

Image-1 Kimpex HD Stator YAMAHA - 345345 STATOR YAM KIMPEXHD RMS010-108395 RMS010-108395 KIMPEXHD
Image-1 Kimpex HD Stator YAMAHA - 345345 STATOR YAM KIMPEXHD RMS010-108395 RMS010-108395 KIMPEXHD Image-2 Kimpex HD Stator YAMAHA - 345345 STATOR YAM KIMPEXHD RMS010-108395 RMS010-108395 KIMPEXHD Image-3 Kimpex HD Stator YAMAHA - 345345 STATOR YAM KIMPEXHD RMS010-108395 RMS010-108395 KIMPEXHD

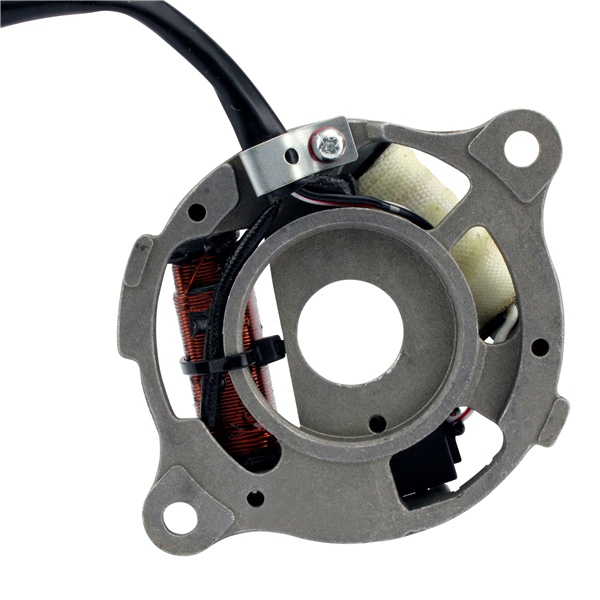

Kimpex HD Stator YAMAHA - 345345 -10%

STATOR YAM KIMPEXHD

OEM #RMS010-108395

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

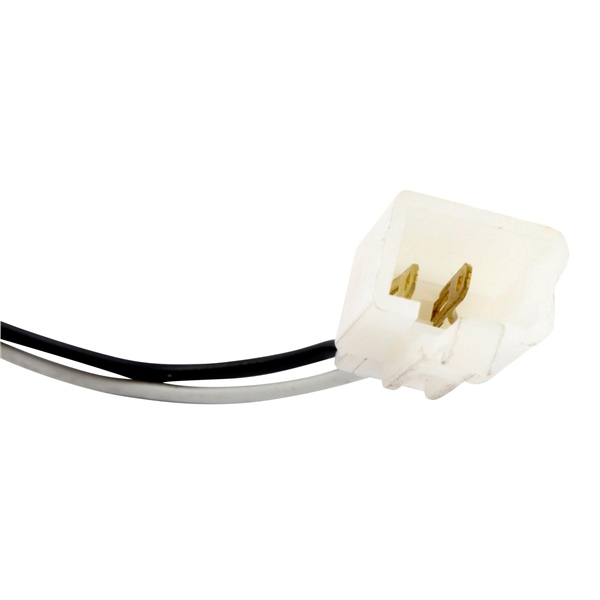

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$88.99 $80.09
Warehouse Qty: 2
  • Fitment
  • Details
CategoryMakeModelYear
MotoYAMAHAPW502001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Compatible BrandYAMAHA
Internal Diameter (mm)20.4 / 40.8
External Diameter (mm)89.3 / 111.6
Thickness (mm)31
Number of wires4
Number of connectors3
Number of terminals4
