STATOR YAM KIMPEXHD

Image-1 Kimpex HD Stator YAMAHA - 345303 STATOR YAM KIMPEXHD RMS010-108281 RMS010-108281 KIMPEXHD
Image-1 Kimpex HD Stator YAMAHA - 345303 STATOR YAM KIMPEXHD RMS010-108281 RMS010-108281 KIMPEXHD Image-2 Kimpex HD Stator YAMAHA - 345303 STATOR YAM KIMPEXHD RMS010-108281 RMS010-108281 KIMPEXHD

Kimpex HD Stator YAMAHA - 345303

STATOR YAM KIMPEXHD

OEM #RMS010-108281

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

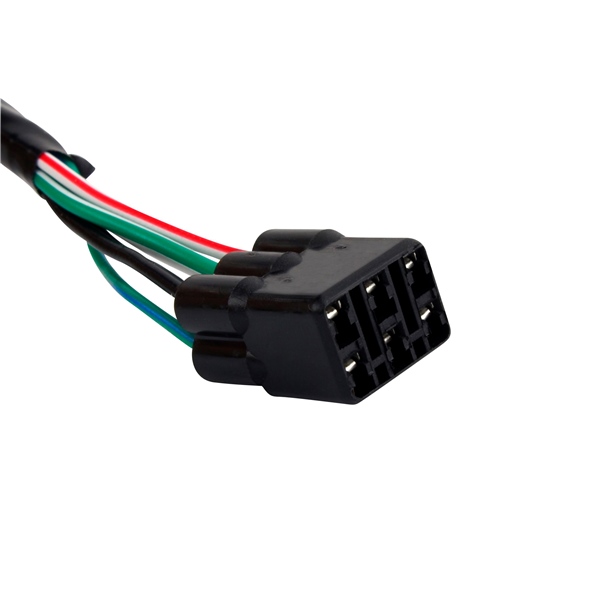

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$221.99
Online Qty: 3
In Store Qty: 0
  • Fitment
  • Details
CategoryMakeModelYear
MotoYAMAHAYZ652018, 2020, 2021, 2022, 2023, 2024
MotoYAMAHAYZ852002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
MotoYAMAHAYZ85LW2022, 2023, 2024, 2025
Compatible BrandYAMAHA
Internal Diameter (mm)27
External Diameter (mm)109
Thickness (mm)32.6
Number of wires6
Number of connectors1
Number of terminals6
