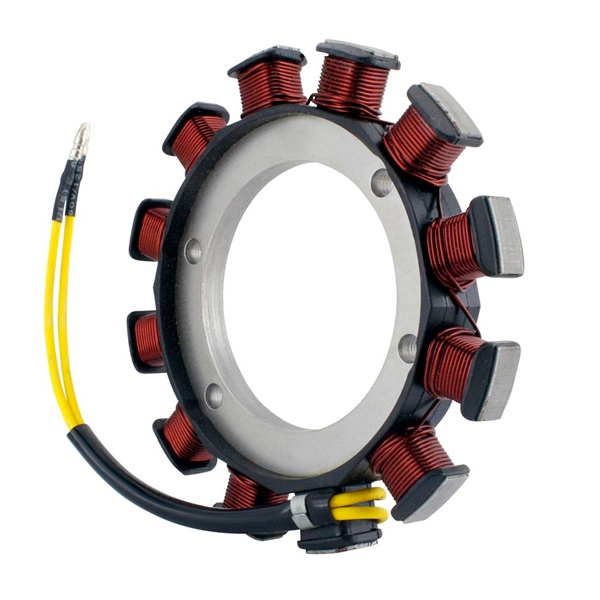

Kimpex HD Stator KAWASAKI - 345286 -10%

STATOR KAWA KIMPEXHD

OEM #RMS010-108104

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

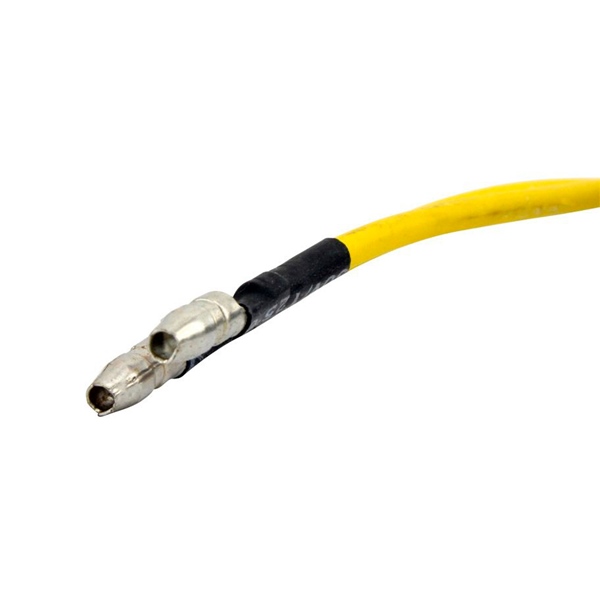

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$87.99 $79.19
Warehouse Qty:
  • Fitment
  • Details
CategoryMakeModelYear
UTVKAWASAKIKAF300 MULE 5502001, 2002, 2003, 2004, 2005
ATVKAWASAKIMule 5001993, 1995
ATVKAWASAKIMule 5202000, 2001
ATVKAWASAKIMule 5501997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Compatible BrandKAWASAKI
Internal Diameter (mm)70
External Diameter (mm)133
Thickness (mm)9
Number of wires2
Number of connectors2
Number of terminals2
