GENERATOR STATOR POL KIMPEXHD

Image-1 Kimpex HD Stator POLARIS - 225926 GENERATOR STATOR POL KIMPEXHD RMS010-107235 RMS010-107235 KIMPEXHD
Image-1 Kimpex HD Stator POLARIS - 225926 GENERATOR STATOR POL KIMPEXHD RMS010-107235 RMS010-107235 KIMPEXHD Image-2 Kimpex HD Stator POLARIS - 225926 GENERATOR STATOR POL KIMPEXHD RMS010-107235 RMS010-107235 KIMPEXHD Image-3 Kimpex HD Stator POLARIS - 225926 GENERATOR STATOR POL KIMPEXHD RMS010-107235 RMS010-107235 KIMPEXHD

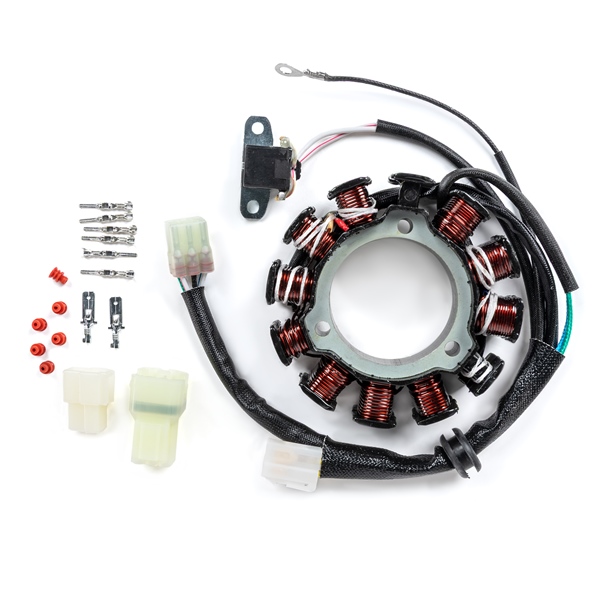

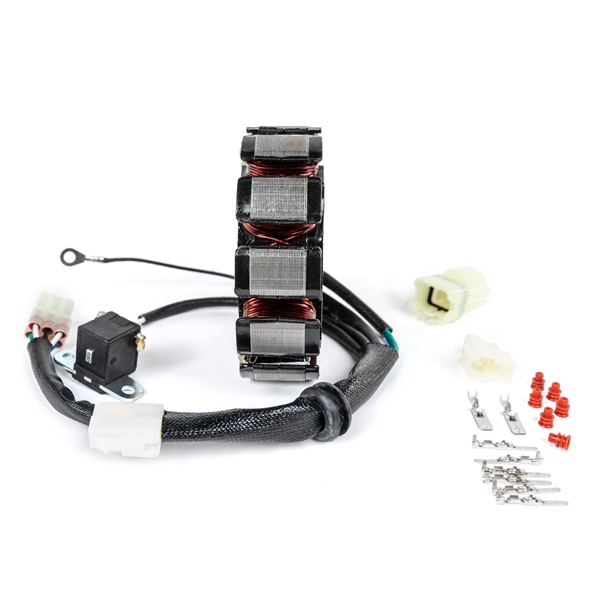

Kimpex HD Stator POLARIS - 225926

GENERATOR STATOR POL KIMPEXHD

OEM #RMS010-107235

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$340.99
Online Qty: 0
In Store Qty: 0
  • Fitment
  • Details
CategoryMakeModelYear
SnowPOLARIS600 Indy 121"2019, 2020
Compatible BrandPOLARIS
Internal Diameter (mm)54
External Diameter (mm)108
Thickness (mm)20
Number of wires7
Number of connectors3
Number of terminals7
