STATOR HON KIMPEXHD

Image-1 Kimpex HD Stator HONDA - 225874 STATOR HON KIMPEXHD RMS010-107116 RMS010-107116 KIMPEXHD
Image-1 Kimpex HD Stator HONDA - 225874 STATOR HON KIMPEXHD RMS010-107116 RMS010-107116 KIMPEXHD Image-2 Kimpex HD Stator HONDA - 225874 STATOR HON KIMPEXHD RMS010-107116 RMS010-107116 KIMPEXHD Image-3 Kimpex HD Stator HONDA - 225874 STATOR HON KIMPEXHD RMS010-107116 RMS010-107116 KIMPEXHD Image-4 Kimpex HD Stator HONDA - 225874 STATOR HON KIMPEXHD RMS010-107116 RMS010-107116 KIMPEXHD Image-5 Kimpex HD Stator HONDA - 225874 STATOR HON KIMPEXHD RMS010-107116 RMS010-107116 KIMPEXHD

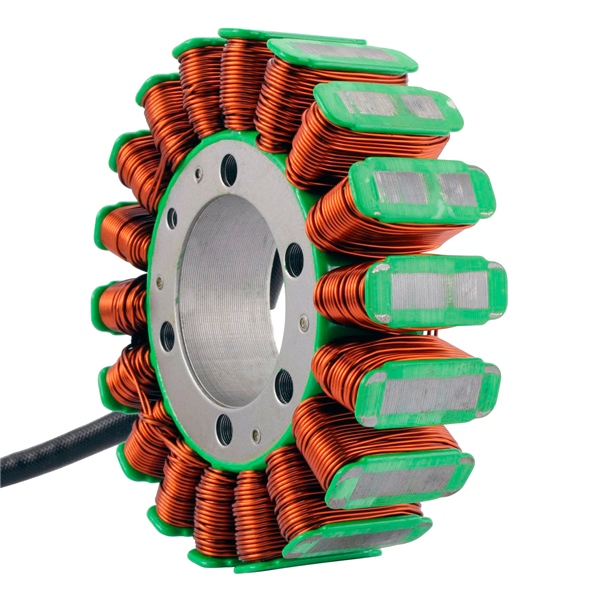

Kimpex HD Stator HONDA - 225874 -10%

STATOR HON KIMPEXHD

OEM #RMS010-107116

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

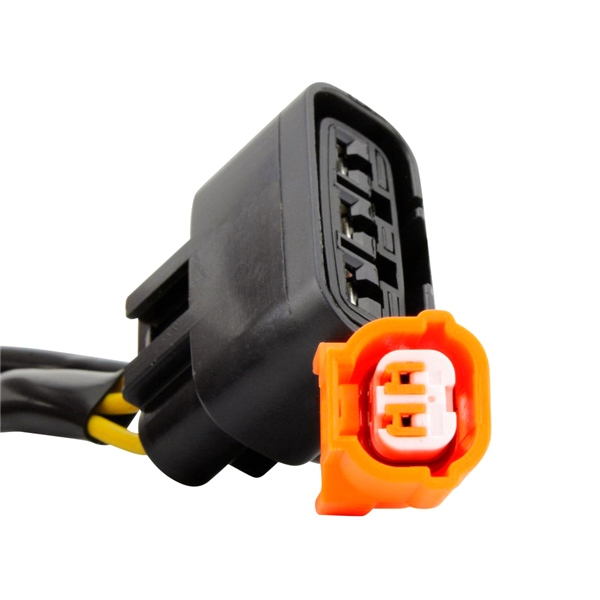

  • Connector included

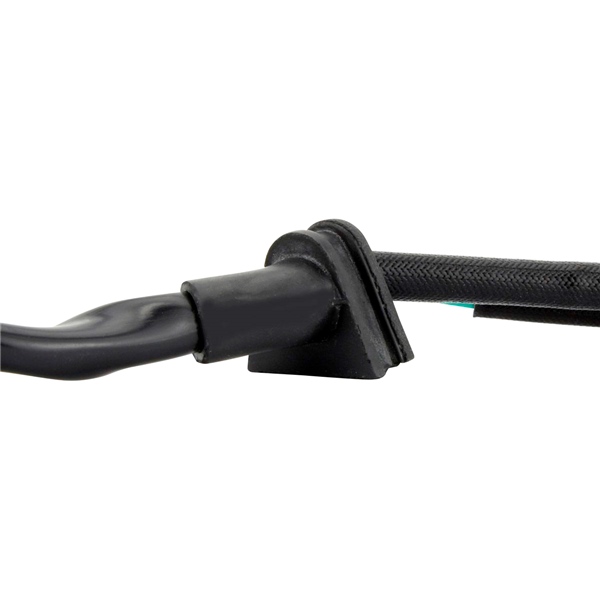

  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$131.99 $118.79
Warehouse Qty: 1
  • Fitment
  • Details
CategoryMakeModelYear
VTTHONDATRX420FA 4X4 IRS RANCHER2021
VTTHONDATRX420FA 4X4 IRS RANCHER DCT2015, 2016, 2017, 2018, 2019, 2020
VTTHONDATRX420FA 4X4 RANCHER DCT2015
ATVHONDATRX420FA1 4x4 Rancher Auto DCT2014, 2015, 2016
ATVHONDATRX420FA2 4x4 Rancher Auto DCT EPS2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
ATVHONDATRX420FA5 4x4 Rancher Auto DCT IRS2015, 2016, 2017, 2018, 2019, 2020, 2021
ATVHONDATRX420FA6 4x4 Rancher Auto DCT IRS EPS2015, 2016, 2017, 2018, 2019, 2021
Compatible BrandHONDA
Internal Diameter (mm)42
External Diameter (mm)107
Thickness (mm)24
Number of wires5
Number of connectors2
Number of terminals5
Notes18-Poles Stator

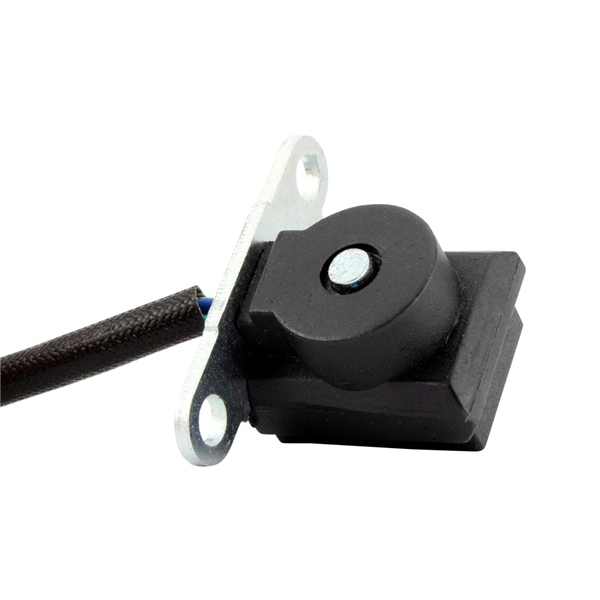

NotesIncludes: Pick up pulsar
