STATOR 660W POL KIMPEXHD

Image-1 Kimpex HD Stator POLARIS - 225872 STATOR 660W POL KIMPEXHD RMS010-107104 RMS010-107104 KIMPEXHD
Image-1 Kimpex HD Stator POLARIS - 225872 STATOR 660W POL KIMPEXHD RMS010-107104 RMS010-107104 KIMPEXHD Image-2 Kimpex HD Stator POLARIS - 225872 STATOR 660W POL KIMPEXHD RMS010-107104 RMS010-107104 KIMPEXHD Image-3 Kimpex HD Stator POLARIS - 225872 STATOR 660W POL KIMPEXHD RMS010-107104 RMS010-107104 KIMPEXHD Image-4 Kimpex HD Stator POLARIS - 225872 STATOR 660W POL KIMPEXHD RMS010-107104 RMS010-107104 KIMPEXHD Image-5 Kimpex HD Stator POLARIS - 225872 STATOR 660W POL KIMPEXHD RMS010-107104 RMS010-107104 KIMPEXHD

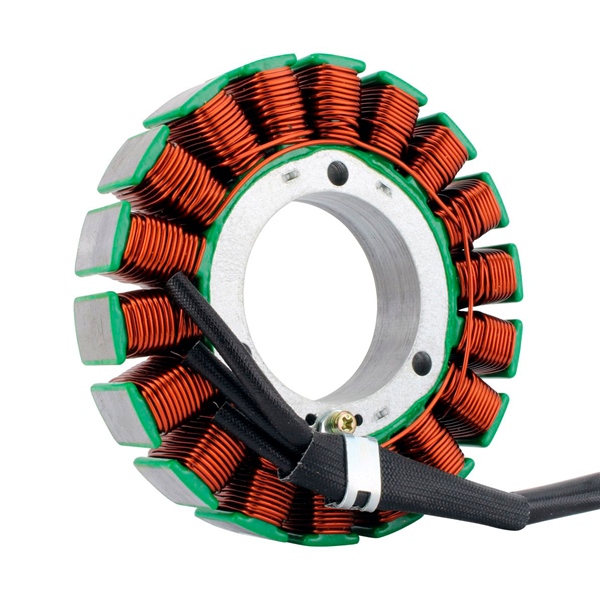

Kimpex HD Stator POLARIS - 225872 -10%

STATOR 660W POL KIMPEXHD

OEM #RMS010-107104

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

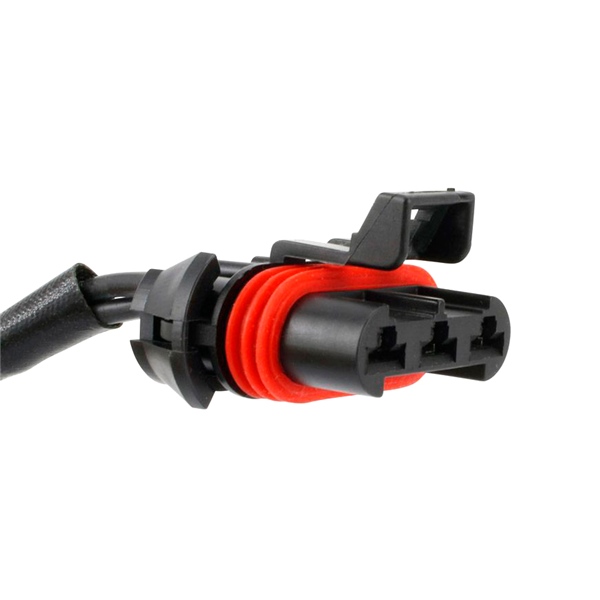

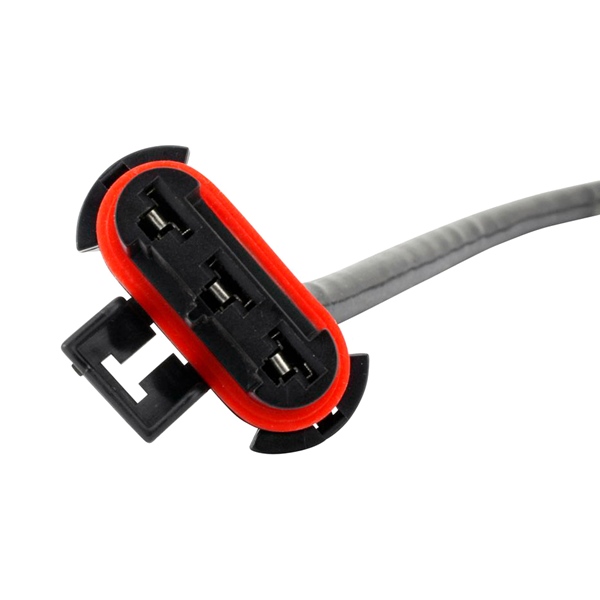

  • Connector included

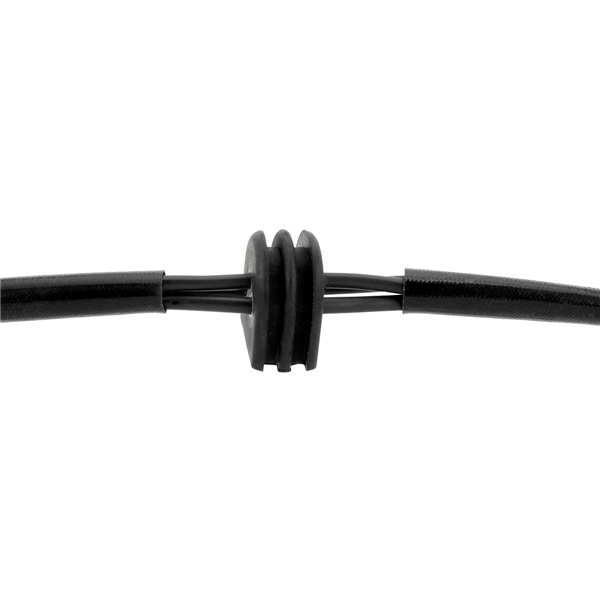

  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$310.99 $279.89
Warehouse Qty: 5
  • Fitment
  • Details
CategoryMakeModelYear
ATVPOLARISRanger 10002020, 2021, 2022
ATVPOLARISRanger 1000 EPS2020, 2021, 2022
ATVPOLARISRanger 1000 EPS Premium2020, 2021, 2022
UTVPOLARISRANGER CREW 10002021, 2022, 2024, 2025
UTVPOLARISRANGER CREW 1000 EPS PREMIUM2020, 2021, 2022
ATVPOLARISRanger Crew 1000 Premium EPS2022, 2024, 2025
ATVPOLARISRanger Crew 1000 XP NorthStar Premium EPS2020
ATVPOLARISRanger Crew 570 Full-Size2023
ATVPOLARISRanger Crew XP 1000 20th Anniversary EPS2019
UTVPOLARISRANGER CREW XP 1000 EPS2019, 2020, 2021
UTVPOLARISRANGER CREW XP 1000 EPS HIGH LIFTER2019, 2020, 2021
UTVPOLARISRANGER CREW XP 1000 EPS NORTHSTAR PREMIUM2021
UTVPOLARISRANGER CREW XP 1000 EPS PREMIUM2020, 2021
UTVPOLARISRANGER CREW XP 1000 EPS PREMIUM RIDE COMMAND2021
ATVPOLARISRanger Crew XP 1000 High Lifter EPS2019, 2020, 2021, 2022
ATVPOLARISRanger Crew XP 1000 NorthStar EPS2019, 2021
ATVPOLARISRanger Crew XP 1000 NorthStar Premium EPS2022, 2023, 2024, 2025
ATVPOLARISRanger Crew XP 1000 NorthStar Trail Boss EPS2021, 2022, 2023, 2024, 2025
ATVPOLARISRanger Crew XP 1000 NorthStar Ultimate EPS2021, 2022, 2023, 2024, 2025
ATVPOLARISRanger Crew XP 1000 Premium EPS2019, 2020, 2021, 2022, 2023, 2024, 2025
ATVPOLARISRanger Crew XP 1000 Texas Edition EPS2020, 2021, 2022
ATVPOLARISRanger Crew XP 1000 Trail Boss EPS2021, 2022
UTVPOLARISRANGER CREW XP1000 EPS NORTHSTAR ULTIMATE2021
ATVPOLARISRanger XP 1000 Back Country2019
ATVPOLARISRanger XP 1000 Big Game Edition2022
UTVPOLARISRANGER XP 1000 EPS2018, 2019, 2020, 2021
UTVPOLARISRANGER XP 1000 EPS HIGH LIFTER2019, 2021, 2022
UTVPOLARISRANGER XP 1000 EPS PREMIUM2022, 2023
UTVPOLARISRANGER XP 1000 EPS RIDE COMMAND2021
UTVPOLARISRANGER XP 1000 EPS TEXAS EDITION2021, 2022, 2023
UTVPOLARISRANGER XP 1000 EPS TRAIL BOSS2021, 2022
ATVPOLARISRanger XP 1000 High Lifter EPS2018, 2019, 2020, 2021, 2022
ATVPOLARISRanger XP 1000 Mud High Lifter EPS2019
ATVPOLARISRanger XP 1000 NorthStar Edition Trail Boss EPS2021, 2022, 2023, 2025
ATVPOLARISRanger XP 1000 NorthStar Edition Ultimate2022
ATVPOLARISRanger XP 1000 NorthStar EPS2018, 2019, 2020
ATVPOLARISRanger XP 1000 NorthStar Premium EPS2020, 2021, 2022, 2023, 2025
ATVPOLARISRanger XP 1000 NorthStar Premium Fixed Windshield2025
ATVPOLARISRanger XP 1000 NorthStar Ultimate EPS2020, 2021, 2023, 2025
ATVPOLARISRanger XP 1000 Premium EPS2019, 2020, 2021, 2022, 2023, 2025
ATVPOLARISRanger XP 1000 Texas Edition EPS2020, 2021
ATVPOLARISRanger XP 1000 Trail Boss EPS2021, 2022
ATVPOLARISRanger XP 1000 Waterfowl Edition2022
UTVPOLARISRANGER XP1000 EPS BIG GAME2022
UTVPOLARISRANGER XP1000 EPS NORTHSTAR PREMIUM2021, 2022, 2023, 2024
UTVPOLARISRANGER XP1000 EPS NORTHSTAR RC TRAIL BOSS2023, 2024
UTVPOLARISRANGER XP1000 EPS NORTHSTAR TRAIL BOSS2022, 2023
UTVPOLARISRANGER XP1000 EPS NORTHSTAR ULTIMATE2021, 2022, 2023
UTVPOLARISRANGER XP1000 EPS NORTHSTAR ULTIMATE RC2020, 2023
UTVPOLARISRANGER XP1000 EPS WATER FOWL2022
Compatible BrandPOLARIS
Internal Diameter (mm)54
External Diameter (mm)126
Thickness (mm)21
Number of wires3
Number of connectors1
Number of terminals3
Notes18-Poles Stator
