STATOR YAM KIMPEXHD

Image-1 Kimpex HD Stator YAMAHA - 225862 STATOR YAM KIMPEXHD RMS010-107084 RMS010-107084 KIMPEXHD
Image-1 Kimpex HD Stator YAMAHA - 225862 STATOR YAM KIMPEXHD RMS010-107084 RMS010-107084 KIMPEXHD Image-2 Kimpex HD Stator YAMAHA - 225862 STATOR YAM KIMPEXHD RMS010-107084 RMS010-107084 KIMPEXHD

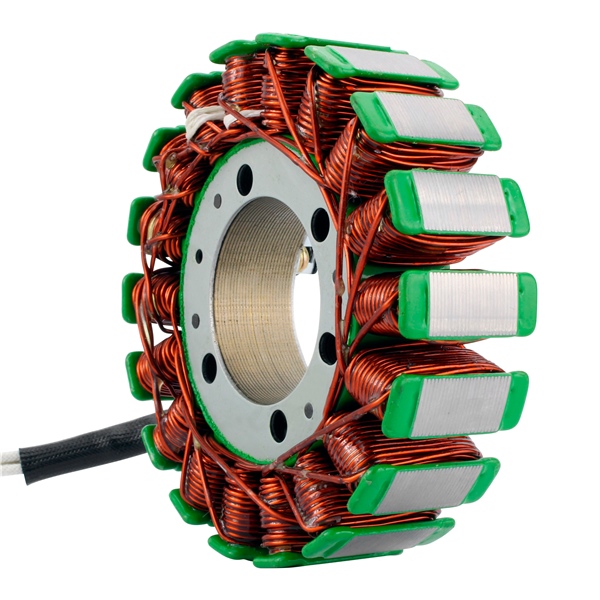

Kimpex HD Stator YAMAHA - 225862 -10%

STATOR YAM KIMPEXHD

OEM #RMS010-107084

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$280.99 $252.89
Warehouse Qty: 11
  • Fitment
  • Details
CategoryMakeModelYear
ATVYAMAHAWolverine 7002016, 2017, 2018
ATVYAMAHAWolverine 700 EPS2017, 2018
ATVYAMAHAWolverine 700 R-Spec EPS2016, 2017, 2018
ATVYAMAHAWolverine 700 R-Spec EPS Hunter2016, 2017, 2018
ATVYAMAHAWolverine 700 R-Spec EPS SE2016, 2017, 2018
ATVYAMAHAWolverine 700 R-Spec FOX EPS2016
UTVYAMAHAYX70E - WOLVERINE2016, 2017, 2018
UTVYAMAHAYX70E - WOLVERINE EPS2017
UTVYAMAHAYX70EP WOLVERINE R SPEC EPS2016, 2017, 2018
UTVYAMAHAYX70EP WOLVERINE SE EPS2016
Compatible BrandYAMAHA
Internal Diameter (mm)42
External Diameter (mm)108
Thickness (mm)23
Number of wires5
Number of connectors3
Number of terminals5
Notes18-Poles Stator
