GENERATOR STATOR YAM KIMPEXHD

Image-1 Kimpex HD Stator YAMAHA - 225861 GENERATOR STATOR YAM KIMPEXHD RMS010-107076 RMS010-107076 KIMPEXHD

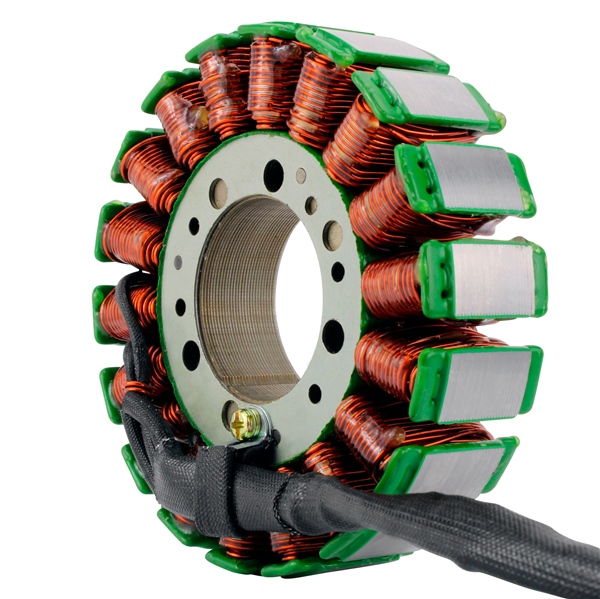

Image-1 Kimpex HD Stator YAMAHA - 225861 GENERATOR STATOR YAM KIMPEXHD RMS010-107076 RMS010-107076 KIMPEXHD Image-2 Kimpex HD Stator YAMAHA - 225861 GENERATOR STATOR YAM KIMPEXHD RMS010-107076 RMS010-107076 KIMPEXHD

Kimpex HD Stator YAMAHA - 225861 -10%

GENERATOR STATOR YAM KIMPEXHD

OEM #RMS010-107076

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$310.99 $279.89
Warehouse Qty: 6
  • Fitment
  • Details
CategoryMakeModelYear
UTVYAMAHAYX10Z - YXZ1000R SS EPS2024
UTVYAMAHAYX10Z - YXZ1000R SS LE EPS2019
UTVYAMAHAYX10Z - YXZ1000R SS SE EPS2019, 2020, 2021, 2022, 2023, 2024
ATVYAMAHAYXZ1000R EPS2019, 2020, 2021, 2022, 2023, 2024
ATVYAMAHAYXZ1000R EPS SE2019, 2020
ATVYAMAHAYXZ1000R EPS SS2019, 2020, 2021, 2022, 2023, 2024
ATVYAMAHAYXZ1000R EPS SS SE2019, 2020, 2021, 2024
ATVYAMAHAYXZ1000R EPS SS XTR2020, 2021, 2022, 2023
Compatible BrandYAMAHA
Internal Diameter (mm)42
External Diameter (mm)115
Thickness (mm)23
Number of wires5
Number of connectors4
Number of terminals5
Notes18-Poles Generator Stator
