STATOR C-AM KIMPEXHD

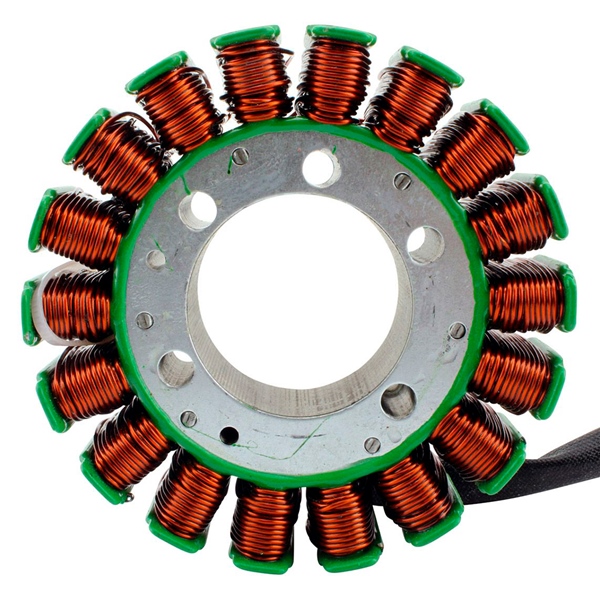

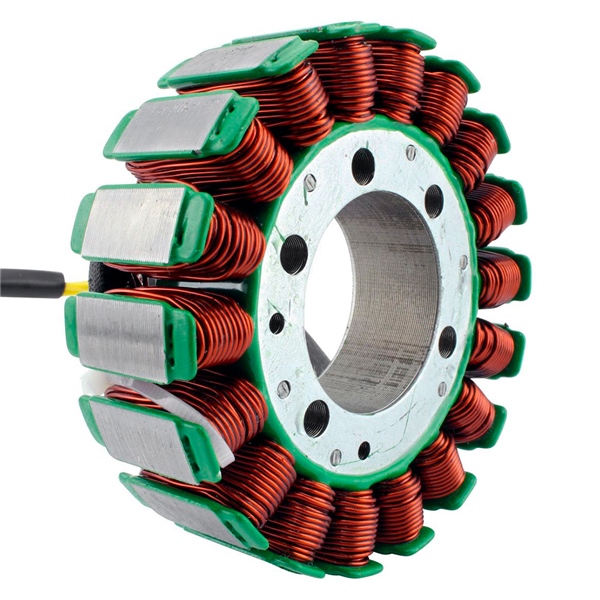

Image-1 Kimpex HD Stator CAN-AM (BRP) - 345004 STATOR C-AM KIMPEXHD RMS010-106349 RMS010-106349 KIMPEXHD
Image-1 Kimpex HD Stator CAN-AM (BRP) - 345004 STATOR C-AM KIMPEXHD RMS010-106349 RMS010-106349 KIMPEXHD Image-2 Kimpex HD Stator CAN-AM (BRP) - 345004 STATOR C-AM KIMPEXHD RMS010-106349 RMS010-106349 KIMPEXHD Image-3 Kimpex HD Stator CAN-AM (BRP) - 345004 STATOR C-AM KIMPEXHD RMS010-106349 RMS010-106349 KIMPEXHD

Kimpex HD Stator CAN-AM (BRP) - 345004 -10%

STATOR C-AM KIMPEXHD

OEM #RMS010-106349

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$236.99 $213.29
Warehouse Qty: 3
  • Fitment
  • Details
CategoryMakeModelYear
UTVBRP/CAN-AMDEFENDER HD52017, 2017, 2018, 2018, 2019, 2019, 2020, 2020, 2021, 2021
UTVBRP/CAN-AMDEFENDER HD5 DPS2017, 2017, 2018, 2018, 2019, 2019, 2020, 2020, 2021, 2021
VTTBRP/CAN-AMOUTLANDER 450 DPS2017, 2018, 2019, 2019, 2020, 2021, 2021, 2022, 2022, 2023, 2023
VTTBRP/CAN-AMOUTLANDER 450 HUNTING EDN PS2023
VTTBRP/CAN-AMOUTLANDER 450 MOSSY OAK EDN PS2022
VTTBRP/CAN-AMOUTLANDER 570 DPS2017, 2018, 2019, 2019, 2020, 2020, 2021, 2021
VTTBRP/CAN-AMOUTLANDER 570 X MR PS2018, 2019, 2020, 2021, 2022, 2023
VTTBRP/CAN-AMOUTLANDER 570 XT PS2018, 2019, 2020, 2021, 2022, 2023
VTTBRP/CAN-AMOUTLANDER L 4502015, 2015, 2016, 2016
VTTBRP/CAN-AMOUTLANDER L 450 DPS2015, 2015, 2016, 2016
VTTBRP/CAN-AMOUTLANDER L 500 DPS2015
VTTBRP/CAN-AMOUTLANDER L 570 DPS2016
VTTBRP/CAN-AMOUTLANDER L 570 HUNTING EDITION DPS2016
VTTBRP/CAN-AMOUTLANDER L 570 LE DPS2016
VTTBRP/CAN-AMOUTLANDER L 570 X MR DPS2016
VTTBRP/CAN-AMOUTLANDER L MAX 4502015, 2015, 2016, 2016
VTTBRP/CAN-AMOUTLANDER L MAX 450 DPS2015, 2015, 2016, 2016
VTTBRP/CAN-AMOUTLANDER L MAX 500 DPS2015, 2015
VTTBRP/CAN-AMOUTLANDER L MAX 570 DPS2016
VTTBRP/CAN-AMOUTLANDER MAX 450 DPS2017, 2017, 2018, 2018, 2019, 2019, 2020, 2020, 2021, 2021, 2022, 2022, 2023, 2023
VTTBRP/CAN-AMOUTLANDER MAX 450 DPS 6X62019, 2020, 2021, 2022, 2023
VTTBRP/CAN-AMOUTLANDER MAX 570 DPS2018, 2019, 2020, 2021, 2021, 2022, 2023
VTTBRP/CAN-AMRENEGADE 570 X MR PS2017, 2018, 2019
VTTBRP/CAN-AMRENEGADE 650 X MR PS2022
ATVCAN-AM (BRP)Outlander 4502018, 2019, 2021, 2022, 2022, 2023, 2023
ATVCAN-AM (BRP)Outlander 450 Mossy Oak Edition2021, 2022, 2023
ATVCAN-AM (BRP)Outlander 5702019, 2020, 2021, 2022, 2023
ATVCAN-AM (BRP)Outlander 570 Mossy Oak Edition2021, 2022
ATVCAN-AM (BRP)Outlander 570 Xmr DPS2017, 2018, 2020
ATVCAN-AM (BRP)Outlander 6502022
ATVCAN-AM (BRP)Outlander 650 XT2022
ATVCAN-AM (BRP)Outlander L 570 XMR DPS2016
ATVCAN-AM (BRP)Outlander L MAX 5002015
ATVCAN-AM (BRP)Outlander MAX 4502019, 2020, 2021, 2022, 2022, 2023, 2023
ATVCAN-AM (BRP)Outlander MAX 5702021, 2022, 2023, 2023
ATVCAN-AM (BRP)Outlander MAX 570 XT2020, 2021, 2022, 2023
ATVCAN-AM (BRP)Outlander MAX 650 6X6 DPS2022
ATVCAN-AM (BRP)Outlander MAX 650 DPS2022
ATVCAN-AM (BRP)Renegade 570 Xmr2018
ATVCAN-AM (BRP)Renegade 650 Xmr2022
ATVCAN-AM (BRP)Traxter HD52019, 2020, 2021
Compatible BrandCAN-AM (BRP)
Internal Diameter (mm)42
External Diameter (mm)104
Thickness (mm)24
Number of wires3
Number of connectors1
Number of terminals3
