STATOR HON KIMPEXHD

Image-1 Kimpex HD Stator HONDA - 225824 STATOR HON KIMPEXHD RMS010-106262 RMS010-106262 KIMPEXHD
Image-1 Kimpex HD Stator HONDA - 225824 STATOR HON KIMPEXHD RMS010-106262 RMS010-106262 KIMPEXHD Image-2 Kimpex HD Stator HONDA - 225824 STATOR HON KIMPEXHD RMS010-106262 RMS010-106262 KIMPEXHD Image-3 Kimpex HD Stator HONDA - 225824 STATOR HON KIMPEXHD RMS010-106262 RMS010-106262 KIMPEXHD

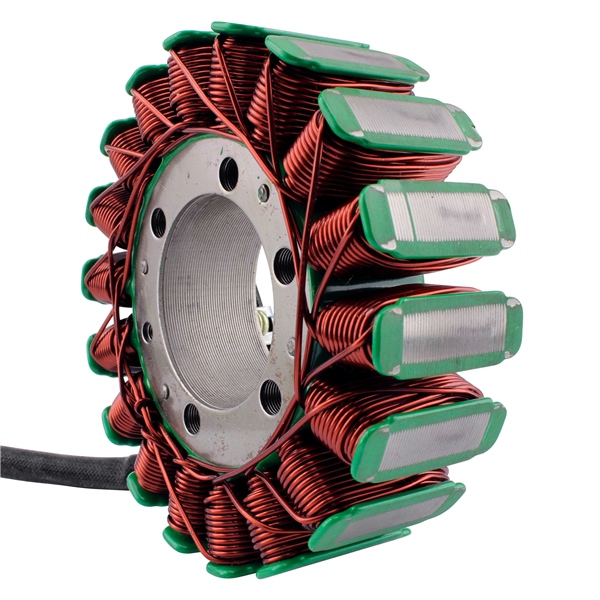

Kimpex HD Stator HONDA - 225824 -10%

STATOR HON KIMPEXHD

OEM #RMS010-106262

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$250.99 $225.89
Warehouse Qty: 3
  • Fitment
  • Details
CategoryMakeModelYear
ATVHONDATRX500FA 4x4 Foreman Rubicon2014
ATVHONDATRX500FA5 4x4 Foreman Rubicon Auto DCT IRS2019
ATVHONDATRX500FA6 4x4 Foreman DCT IRS EPS2018
ATVHONDATRX500FA6 4x4 Foreman Rubicon Auto DCT IRS EPS2019
ATVHONDATRX500FA7 4x4 Foreman Rubicon Auto DCT IRS EPS DLX2019
ATVHONDATRX500FA7 4x4 Foreman Rubicon DCT IRS EPS Deluxe2018
VTTHONDATRX500FE 4X4 FOREMAN2015, 2016, 2017, 2018, 2019
ATVHONDATRX500FE 4x4 Foreman ES2014
ATVHONDATRX500FE1 4x4 Foreman ES2015, 2016
ATVHONDATRX500FE2 4x4 Foreman ES EPS2015, 2016, 2017, 2018, 2019
VTTHONDATRX500FM 4X4 FOREMAN2014, 2015, 2016, 2017, 2018, 2019
VTTHONDATRX500FM 4X4 IRS RUBICON2015, 2016, 2017
VTTHONDATRX500FM 4X4 IRS RUBICON EPS2018, 2019
ATVHONDATRX500FM1 4x4 Foreman2015, 2016, 2017, 2018, 2019
ATVHONDATRX500FM5 4x4 Foreman Rubicon IRS2016
ATVHONDATRX500FM6 4x4 Foreman Rubicon EPS2017, 2018
ATVHONDATRX500FM6 4x4 Foreman Rubicon IRS EPS2015, 2016, 2019
VTTHONDATRX500FPE 4X4 FOREMAN2014
VTTHONDATRX500FPM 4X4 FOREMAN2014
VTTHONDATRX520FE FOREMAN2020, 2021
ATVHONDATRX520FE2 Foreman 4x4 ES EPS2020, 2021
VTTHONDATRX520FM FOREMAN2020, 2021
VTTHONDATRX520FM RUBICON IRS EPS2020, 2021
ATVHONDATRX520FM1 Foreman 4x42020
ATVHONDATRX520FM2 Foreman 4x4 EPS2020, 2021
Compatible BrandHONDA
Internal Diameter (mm)40
External Diameter (mm)105
Thickness (mm)35
Number of wires5
Number of connectors2
Number of terminals5
Notes18-Poles Stator

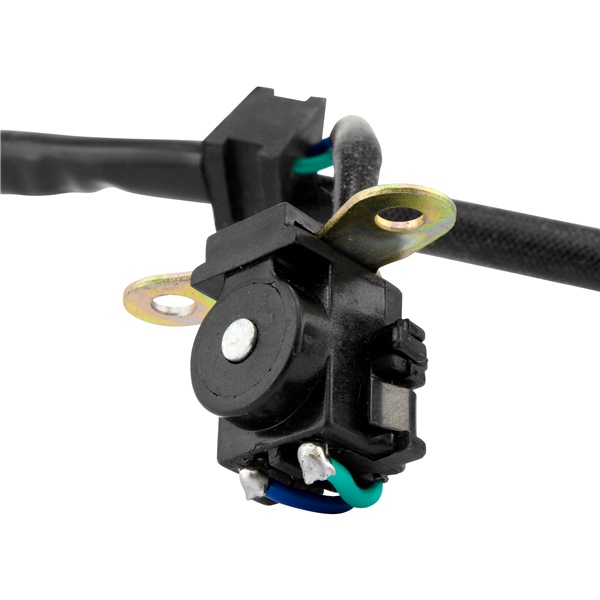

NotesIncludes: Pick up pulsar
NotesIncludes: Connectors
NotesIncludes: Rubber grommet
