STATOR HON KIMPEXHD

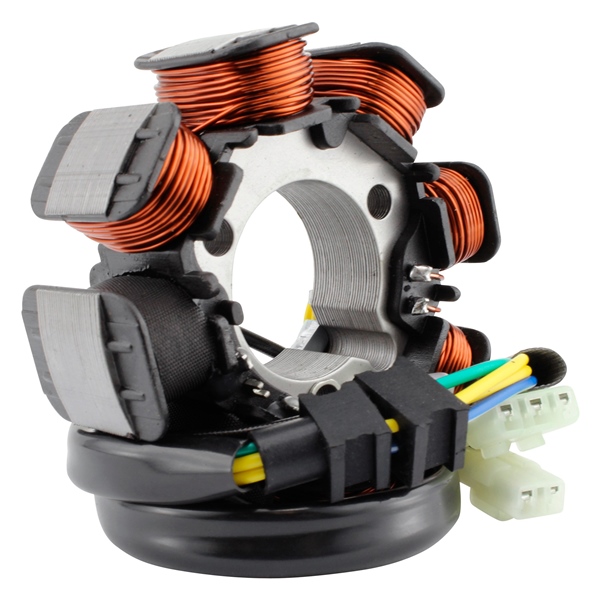

Image-1 Kimpex HD Stator HONDA - 225834 STATOR HON KIMPEXHD RMS010-106239 RMS010-106239 KIMPEXHD
Image-1 Kimpex HD Stator HONDA - 225834 STATOR HON KIMPEXHD RMS010-106239 RMS010-106239 KIMPEXHD Image-2 Kimpex HD Stator HONDA - 225834 STATOR HON KIMPEXHD RMS010-106239 RMS010-106239 KIMPEXHD

Kimpex HD Stator HONDA - 225834 -10%

STATOR HON KIMPEXHD

OEM #RMS010-106239

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$147.99 $133.19
Warehouse Qty:
  • Fitment
  • Details
CategoryMakeModelYear
VTTHONDATRX200 2X4 FOURTRAX1990, 1991
ATVHONDATRX200D 2x41990, 1991, 1993, 1994, 1995, 1996
VTTHONDATRX200D 2X4 FOURTRAX1991, 1992, 1993, 1994, 1995, 1996
ATVHONDATRX200D 2x4 Type II1992, 1997
ATVHONDATRX200SX 2x41990
Compatible BrandHONDA
Internal Diameter (mm)32
External Diameter (mm)89
Thickness (mm)31
Number of wires6
Number of connectors3
Number of terminals6
Notes8-Poles Stator
NotesThe opposite connector is include (main harness side)
NotesIncludes: Connectors
NotesIncludes: Rubber grommet
