GENERATOR STATOR YAM KIMPEXHD

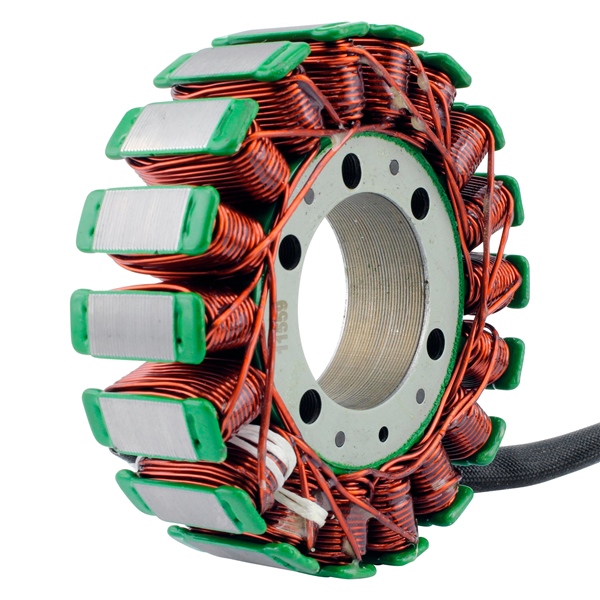

Image-1 Kimpex HD Stator YAMAHA - 225819 GENERATOR STATOR YAM KIMPEXHD RMS010-104902 RMS010-104902 KIMPEXHD
Image-1 Kimpex HD Stator YAMAHA - 225819 GENERATOR STATOR YAM KIMPEXHD RMS010-104902 RMS010-104902 KIMPEXHD Image-2 Kimpex HD Stator YAMAHA - 225819 GENERATOR STATOR YAM KIMPEXHD RMS010-104902 RMS010-104902 KIMPEXHD

Kimpex HD Stator YAMAHA - 225819 -10%

GENERATOR STATOR YAM KIMPEXHD

OEM #RMS010-104902

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$340.99 $306.89
Warehouse Qty: 8
  • Fitment
  • Details
CategoryMakeModelYear
ATVYAMAHAGrizzly 700 4x4 FI2016, 2017
ATVYAMAHAGrizzly 700 EPS 4x4 FI2016, 2017, 2018
ATVYAMAHAGrizzly 700 EPS 4x4 Hunter FI2016, 2017, 2018
ATVYAMAHAGrizzly 700 EPS 4x4 LE2016, 2017, 2018
ATVYAMAHAGrizzly 700 EPS 4x4 SE2016, 2017, 2018
ATVYAMAHAKodiak 7002016, 2017, 2018
ATVYAMAHAKodiak 700 4x4 EPS Hunter2016, 2017, 2018
ATVYAMAHAKodiak 700 EPS 4x42016, 2017, 2018
ATVYAMAHAKodiak 700 EPS 4x4 SE2016, 2017, 2018
VTTYAMAHAYF70GP - GRIZZLY 700 EPS2016, 2017, 2018
VTTYAMAHAYF70K - KODIAK 7002016, 2017, 2018
VTTYAMAHAYF70KP - KODIAK 700 EPS2016, 2017, 2018
VTTYAMAHAYFM7F - GRIZZLY 7002016, 2017
VTTYAMAHAYFM7FG - GRIZZLY 700 LE EPS2016, 2017, 2018
VTTYAMAHAYFM7FG - GRIZZLY 700 SE EPS2016, 2017, 2018
Compatible BrandYAMAHA
Internal Diameter (mm)42
External Diameter (mm)66
Thickness (mm)22
Number of wires5
Number of connectors2
Number of terminals5
Notes18-Poles Stator
NotesIncludes: Pick up pulsar
NotesIncludes: Connectors
NotesIncludes: Rubber grommet
