GENERATOR STATOR ATV/UTV KIMPEXHD

Image-1 Kimpex HD Stator HISUN - 345115 GENERATOR STATOR ATV/UTV KIMPEXHD RMS010-104830 RMS010-104830 KIMPEXHD
Image-1 Kimpex HD Stator HISUN - 345115 GENERATOR STATOR ATV/UTV KIMPEXHD RMS010-104830 RMS010-104830 KIMPEXHD Image-2 Kimpex HD Stator HISUN - 345115 GENERATOR STATOR ATV/UTV KIMPEXHD RMS010-104830 RMS010-104830 KIMPEXHD Image-3 Kimpex HD Stator HISUN - 345115 GENERATOR STATOR ATV/UTV KIMPEXHD RMS010-104830 RMS010-104830 KIMPEXHD Image-4 Kimpex HD Stator HISUN - 345115 GENERATOR STATOR ATV/UTV KIMPEXHD RMS010-104830 RMS010-104830 KIMPEXHD Image-5 Kimpex HD Stator HISUN - 345115 GENERATOR STATOR ATV/UTV KIMPEXHD RMS010-104830 RMS010-104830 KIMPEXHD

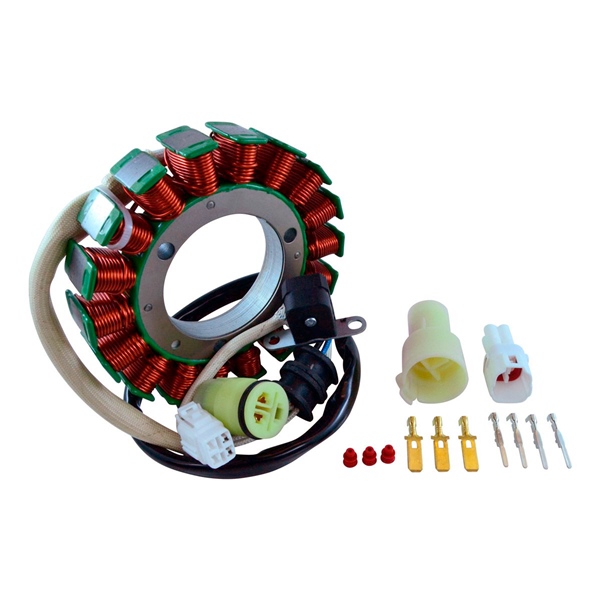

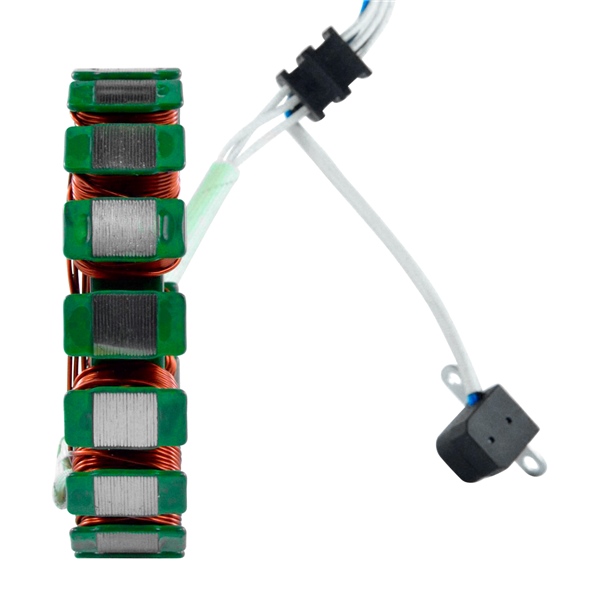

Kimpex HD Stator HISUN - 345115 -10%

GENERATOR STATOR ATV/UTV KIMPEXHD

OEM #RMS010-104830

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

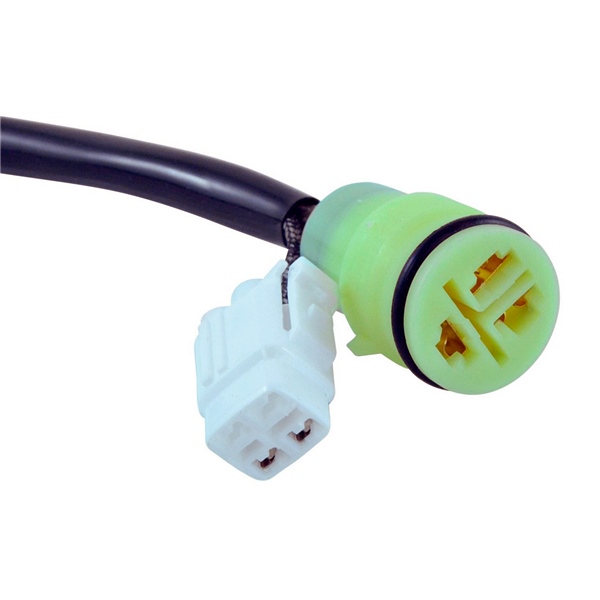

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$236.99 $213.29
Warehouse Qty: 2
  • Fitment
  • Details
CategoryMakeModelYear
ATVHISUNForge 5002016
ATVHISUNForge 7002016
ATVHISUNHS5002016, 2017
ATVHISUNHS7002016, 2017
ATVHISUNSector 4502015, 2016, 2017
ATVHISUNSector 5502015, 2016, 2017
ATVHISUNSector 7502015, 2016, 2017
ATVHISUNStrike 5502017
Compatible BrandHISUN
Internal Diameter (mm)54
External Diameter (mm)115
Number of wires5
Number of connectors2
Number of terminals5
