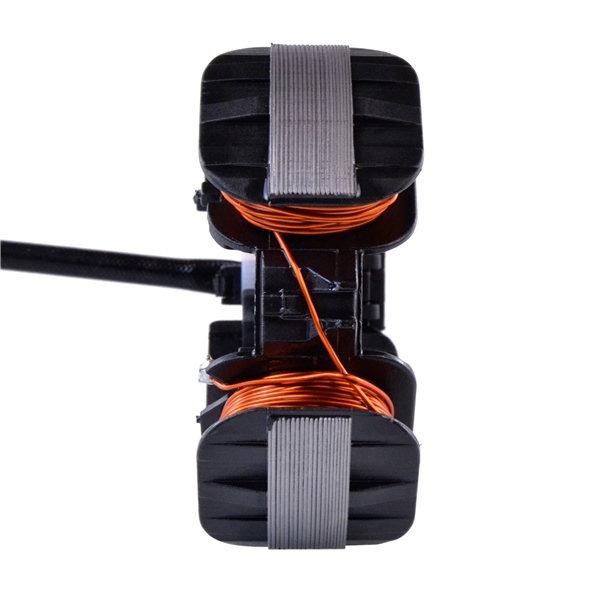

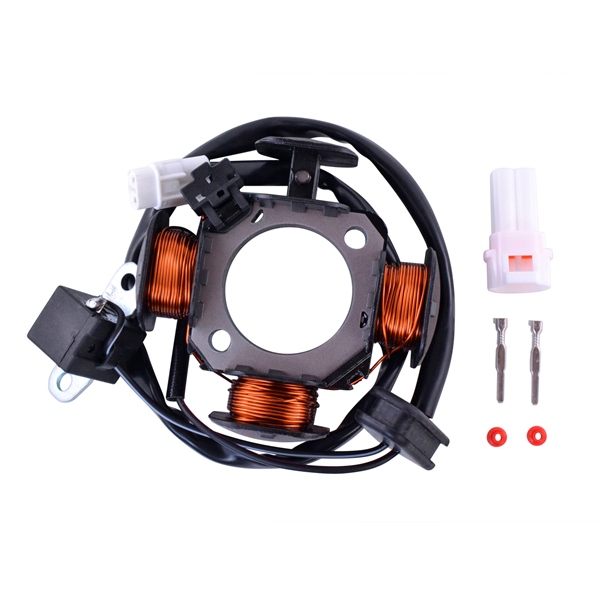

STATOR 4-POLE SUZ KIMPEX

Image-1 Kimpex HD Stator SUZUKI - 225632 STATOR 4-POLE SUZ KIMPEX RMS010-104525 RMS010-104525 KIMPEXHD
Image-1 Kimpex HD Stator SUZUKI - 225632 STATOR 4-POLE SUZ KIMPEX RMS010-104525 RMS010-104525 KIMPEXHD Image-2 Kimpex HD Stator SUZUKI - 225632 STATOR 4-POLE SUZ KIMPEX RMS010-104525 RMS010-104525 KIMPEXHD Image-3 Kimpex HD Stator SUZUKI - 225632 STATOR 4-POLE SUZ KIMPEX RMS010-104525 RMS010-104525 KIMPEXHD

Kimpex HD Stator SUZUKI - 225632 -10%

STATOR 4-POLE SUZ KIMPEX

OEM #RMS010-104525

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$102.99 $92.69
Warehouse Qty:
  • Fitment
  • Details
CategoryMakeModelYear
VTTSUZUKILT-Z50 - QUADSPORT2006, 2007, 2008, 2009, 2017, 2018, 2019, 2021, 2022, 2023
ATVSUZUKILT-Z50 QuadSport 4 stroke2006, 2007, 2008, 2009, 2016, 2017, 2018, 2019, 2021, 2022, 2023
VTTSUZUKILT-Z90 - QUADSPORT2007, 2008, 2009, 2014, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
ATVSUZUKILT-Z90 QuadSport 4 stroke2007, 2008, 2009, 2014, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Compatible BrandSUZUKI
Internal Diameter (mm)36
External Diameter (mm)84
Thickness (mm)12
Number of wires2
Number of connectors2
Number of terminals2
Notes4-Poles Stator
NotesThe opposite connector is include (main harness side)
NotesIncludes: Rubber grommet
NotesIncludes: Connectors
NotesIncludes: Pick up pulsar
