STATOR A/C KIMPEX

Image-1 Kimpex HD Stator ARCTIC CAT - 225559 STATOR A/C KIMPEX RMS010-104019 RMS010-104019 KIMPEXHD
Image-1 Kimpex HD Stator ARCTIC CAT - 225559 STATOR A/C KIMPEX RMS010-104019 RMS010-104019 KIMPEXHD Image-2 Kimpex HD Stator ARCTIC CAT - 225559 STATOR A/C KIMPEX RMS010-104019 RMS010-104019 KIMPEXHD Image-3 Kimpex HD Stator ARCTIC CAT - 225559 STATOR A/C KIMPEX RMS010-104019 RMS010-104019 KIMPEXHD Image-4 Kimpex HD Stator ARCTIC CAT - 225559 STATOR A/C KIMPEX RMS010-104019 RMS010-104019 KIMPEXHD

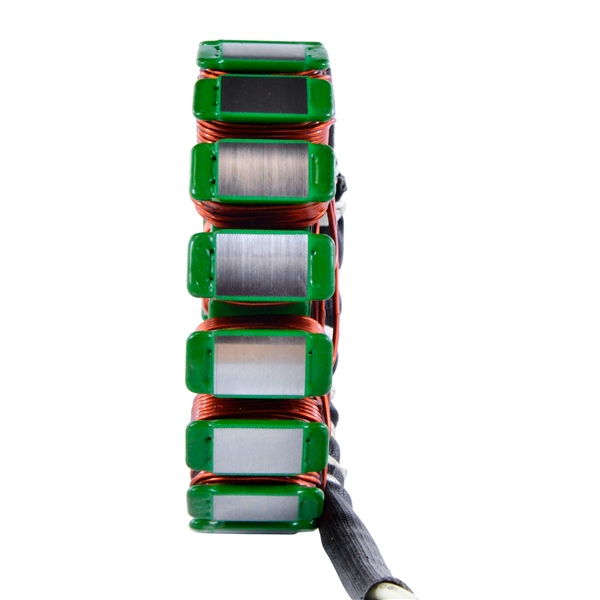

Kimpex HD Stator ARCTIC CAT - 225559 -10%

STATOR A/C KIMPEX

OEM #RMS010-104019

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

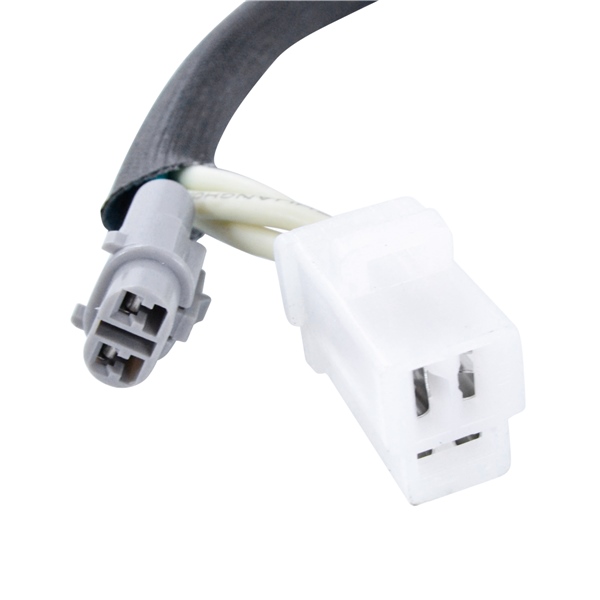

  • Connector included

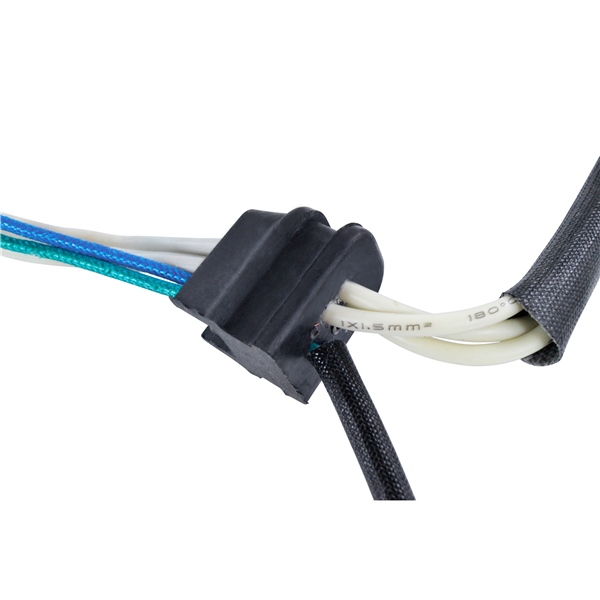

  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$250.99 $225.89
Warehouse Qty: 7
  • Fitment
  • Details
CategoryMakeModelYear
VTTARCTIC CAT1000 MUDPRO2013
VTTARCTIC CAT1000 MUDPRO LTD2014, 2015
VTTARCTIC CAT1000 MUDPRO LTD EPS2017
VTTARCTIC CAT1000 MUDPRO SE EPS2016
VTTARCTIC CAT1000 XT2015, 2016
VTTARCTIC CAT5502014
VTTARCTIC CAT550 LTD2014
VTTARCTIC CAT550 XT2014
VTTARCTIC CAT7002013, 2014
VTTARCTIC CAT700 LTD2013, 2014
VTTARCTIC CAT700 MUDPRO2013
VTTARCTIC CAT700 MUDPRO LTD2014
VTTARCTIC CAT700 MUDPRO LTD EPS2015, 2016, 2017
VTTARCTIC CAT700 XT2013, 2014
VTTARCTIC CATALTERRA 700 MUDPRO LTD2018, 2019
VTTARCTIC CATALTERRA TRV 1000 XT ESP2017
VTTARCTIC CATALTERRA TRV 700 EPS2019, 2020, 2021, 2022
UTVARCTIC CATHDX 500 XT2016, 2017
UTVARCTIC CATHDX 700 CREW XT2017
UTVARCTIC CATHDX 700 XT2016, 2017
UTVARCTIC CATHDX 700 XT SE2016, 2017
UTVARCTIC CATPROWLER 1000 XT2015, 2016, 2017
UTVARCTIC CATPROWLER 500 HDX LTD2014
UTVARCTIC CATPROWLER 700 HDX2013, 2014
UTVARCTIC CATPROWLER 700 HDX XT2015
UTVARCTIC CATPROWLER 700 XT ESP2015, 2016, 2017
UTVARCTIC CATPROWLER 700 XTX2013, 2014
VTTARCTIC CATTBX 7002013, 2014, 2015
VTTARCTIC CATTRV 1000 LTD2013, 2014, 2015
VTTARCTIC CATTRV 1000 XT2015
VTTARCTIC CATTRV 550 LTD2014, 2015
VTTARCTIC CATTRV 550 XT2014, 2015
VTTARCTIC CATTRV 700 EPS SE2016
VTTARCTIC CATTRV 700 LTD2013, 2014, 2015
VTTARCTIC CATTRV 700 XT2013, 2014, 2015
VTTARCTIC CATXR 550 LTD2015
VTTARCTIC CATXR 550 XT2015
VTTARCTIC CATXR 700 LTD2015
VTTARCTIC CATXR 700 XT2015
ATVARCTIC CAT (TEXTRON)1000 XT EPS2015, 2016, 2017, 2017
ATVARCTIC CAT (TEXTRON)500 Core2014
ATVARCTIC CAT (TEXTRON)500 XT2014
ATVARCTIC CAT (TEXTRON)550 Core2014
ATVARCTIC CAT (TEXTRON)700 Core2013, 2014
ATVARCTIC CAT (TEXTRON)700 LTD PS2013, 2014
ATVARCTIC CAT (TEXTRON)Alterra 5502016, 2016
ATVARCTIC CAT (TEXTRON)Alterra 550 XT EPS2016, 2016
ATVARCTIC CAT (TEXTRON)Alterra 5702019, 2019, 2020, 2020, 2021
ATVARCTIC CAT (TEXTRON)Alterra 570 EPS2019, 2020, 2021
ATVARCTIC CAT (TEXTRON)Alterra 570 EPS SE2021
ATVARCTIC CAT (TEXTRON)Alterra 570 XT EPS2019
ATVARCTIC CAT (TEXTRON)Alterra 7002016, 2016, 2017, 2017, 2018, 2018, 2019, 2019
ATVARCTIC CAT (TEXTRON)Alterra 700 EPS2019, 2020, 2020, 2021, 2021
ATVARCTIC CAT (TEXTRON)Alterra 700 EPS SE2021
ATVARCTIC CAT (TEXTRON)Alterra 700 TBX2020
ATVARCTIC CAT (TEXTRON)Alterra 700 TRV EPS2020, 2021
ATVARCTIC CAT (TEXTRON)Alterra 700 XT EPS2016, 2016, 2017, 2017, 2018, 2019
ATVARCTIC CAT (TEXTRON)Alterra MudPro 700 LTD EPS2018, 2019
ATVARCTIC CAT (TEXTRON)Alterra TBX 700 EPS2018, 2018, 2019, 2019, 2020
ATVARCTIC CAT (TEXTRON)Alterra TRV 1000 XT EPS2017
ATVARCTIC CAT (TEXTRON)Alterra TRV 550 XT EPS2017, 2017
ATVARCTIC CAT (TEXTRON)Alterra TRV 700 XT EPS2017, 2017, 2019
ATVARCTIC CAT (TEXTRON)Alterra VLX 7002018, 2018
ATVARCTIC CAT (TEXTRON)Alterra VLX 700 EPS2018
ATVARCTIC CAT (TEXTRON)MudPro 1000 LTD EPS2013, 2014, 2015, 2017
ATVARCTIC CAT (TEXTRON)MudPro 1000 SE EPS2016
ATVARCTIC CAT (TEXTRON)MudPro 700 LTD EPS2013, 2014, 2015, 2016, 2017
ATVARCTIC CAT (TEXTRON)Prowler 1000 XT EPS2015, 2016, 2017
ATVARCTIC CAT (TEXTRON)Prowler 5002017, 2017, 2018, 2018, 2019, 2019, 2020, 2020, 2021, 2021, 2022, 2022
ATVARCTIC CAT (TEXTRON)Prowler 500 HDX2014, 2014, 2015, 2015
ATVARCTIC CAT (TEXTRON)Prowler 500 HDX LTD EPS2014
ATVARCTIC CAT (TEXTRON)Prowler 500 HDX XT2014, 2014, 2016, 2017
ATVARCTIC CAT (TEXTRON)Prowler 550 XT2015, 2015
ATVARCTIC CAT (TEXTRON)Prowler 700 HDX EPS2013, 2014
ATVARCTIC CAT (TEXTRON)Prowler 700 HDX Hunter SE EPS2016
ATVARCTIC CAT (TEXTRON)Prowler 700 HDX XT Crew EPS2016, 2017
ATVARCTIC CAT (TEXTRON)Prowler 700 HDX XT EPS2015, 2016, 2017
ATVARCTIC CAT (TEXTRON)Prowler 700 XT EPS2015, 2016, 2017
ATVARCTIC CAT (TEXTRON)Prowler 700 XTX EPS2013, 2014
ATVARCTIC CAT (TEXTRON)TBX 700 EPS2013, 2014, 2015, 2016, 2017, 2017
ATVARCTIC CAT (TEXTRON)TBX 700 EPS SE2016, 2016
ATVARCTIC CAT (TEXTRON)TRV 1000 LTD EPS2013, 2014, 2015
ATVARCTIC CAT (TEXTRON)TRV 1000 XT EPS2015
ATVARCTIC CAT (TEXTRON)TRV 5002014
ATVARCTIC CAT (TEXTRON)TRV 550 LTD EPS2014, 2015
ATVARCTIC CAT (TEXTRON)TRV 550 XT EPS2014, 2015
ATVARCTIC CAT (TEXTRON)TRV 700 LTD EPS2013, 2014, 2015
ATVARCTIC CAT (TEXTRON)TRV 700 SE EPS2016
ATVARCTIC CAT (TEXTRON)TRV 700 XT EPS2013, 2014, 2015
ATVARCTIC CAT (TEXTRON)VLX 7002017, 2017
ATVARCTIC CAT (TEXTRON)XR 5502015, 2015
ATVARCTIC CAT (TEXTRON)XR 550 LTD PS2015
ATVARCTIC CAT (TEXTRON)XR 550 XT PS2015
ATVARCTIC CAT (TEXTRON)XR 7002015, 2015
ATVARCTIC CAT (TEXTRON)XR 700 LTD PS2015
ATVARCTIC CAT (TEXTRON)XR 700 XT PS2015
Compatible BrandARCTIC CAT
Internal Diameter (mm)53
External Diameter (mm)114
Thickness (mm)17
Number of wires5
Number of connectors2
Number of terminals5
NotesThe opposite connector is include (main harness side)
NotesIncludes: Connectors
NotesIncludes: Rubber grommet
NotesIncludes: Pick up pulsar
