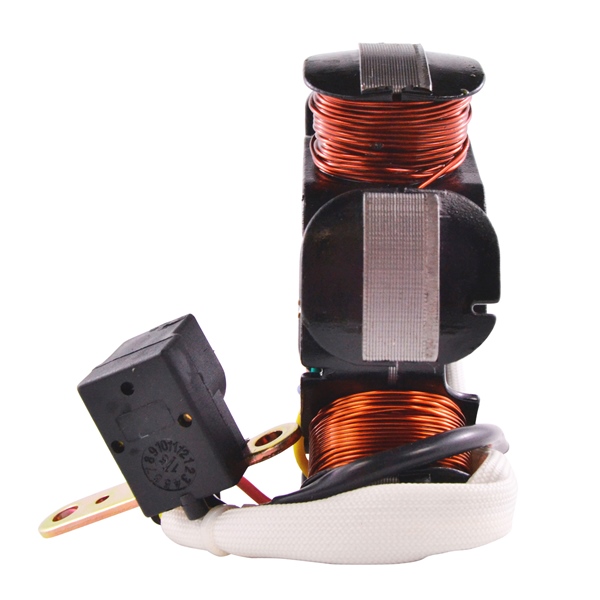

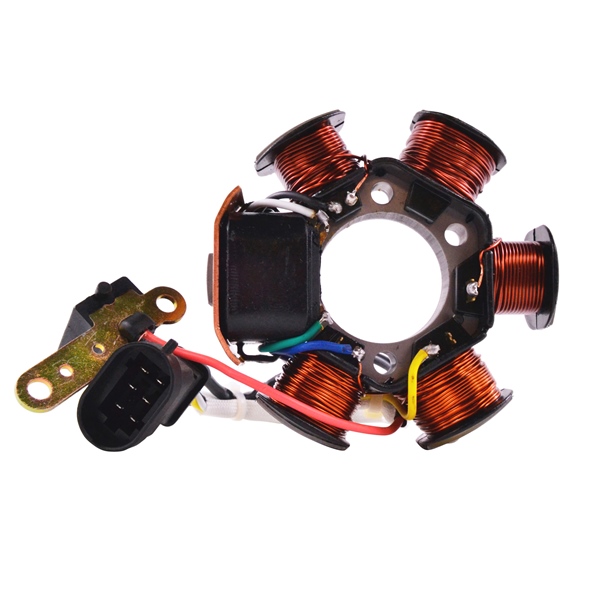

STATOR APRILIA KIMPEX

Image-1 Kimpex HD Stator APRILIA, VESPA - 225064 STATOR APRILIA KIMPEX RMS010-102427 RMS010-102427 KIMPEXHD
Image-1 Kimpex HD Stator APRILIA, VESPA - 225064 STATOR APRILIA KIMPEX RMS010-102427 RMS010-102427 KIMPEXHD Image-2 Kimpex HD Stator APRILIA, VESPA - 225064 STATOR APRILIA KIMPEX RMS010-102427 RMS010-102427 KIMPEXHD Image-3 Kimpex HD Stator APRILIA, VESPA - 225064 STATOR APRILIA KIMPEX RMS010-102427 RMS010-102427 KIMPEXHD Image-4 Kimpex HD Stator APRILIA, VESPA - 225064 STATOR APRILIA KIMPEX RMS010-102427 RMS010-102427 KIMPEXHD

Kimpex HD Stator APRILIA, VESPA - 225064 -60%

STATOR APRILIA KIMPEX

OEM #RMS010-102427

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

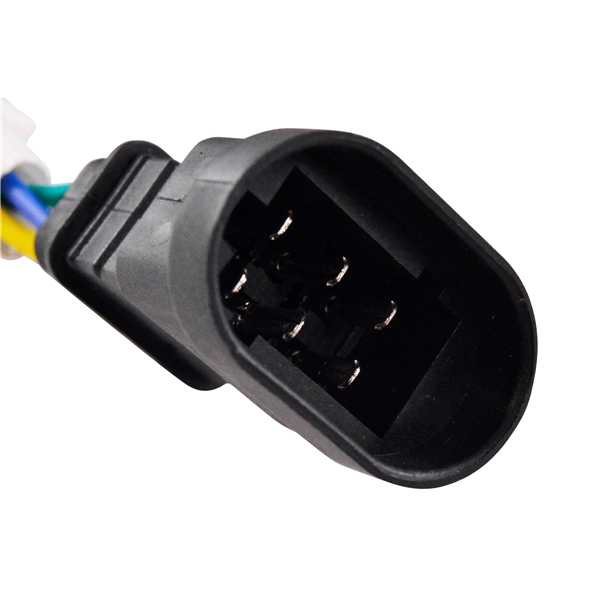

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$66.99 $26.80
Warehouse Qty: 2
  • Fitment
  • Details
CategoryMakeModelYear
MotoAPRILIAMojito Custom 502005, 2006, 2007
MotoAPRILIASportcity 502009, 2010, 2011
MotoAPRILIASR50 Ditech2003, 2004, 2007, 2008, 2009
ScooterAPRILIASR50 DITECH (APRILIA)2007, 2008
ScooterAPRILIASR50 DITECH (PIAGGIO)2009, 2010, 2011, 2012
MotoAPRILIASR50 Factory2012
MotoAPRILIASR50R Factory2006, 2010, 2011
MotoVESPALX 502009, 2010, 2011, 2012
ScooterVESPALX 50 2V2009, 2010
ScooterVESPALX 50 4V2011, 2012
Compatible BrandAPRILIA
Compatible BrandVESPA
Internal Diameter (mm)36
External Diameter (mm)98
Thickness (mm)12
Number of wires6
Number of connectors1
Number of terminals6
NotesIncludes: Connectors
NotesIncludes: Rubber grommet
NotesIncludes: Pick up pulsar
