STATOR HYOSUNG KIMPEXHD

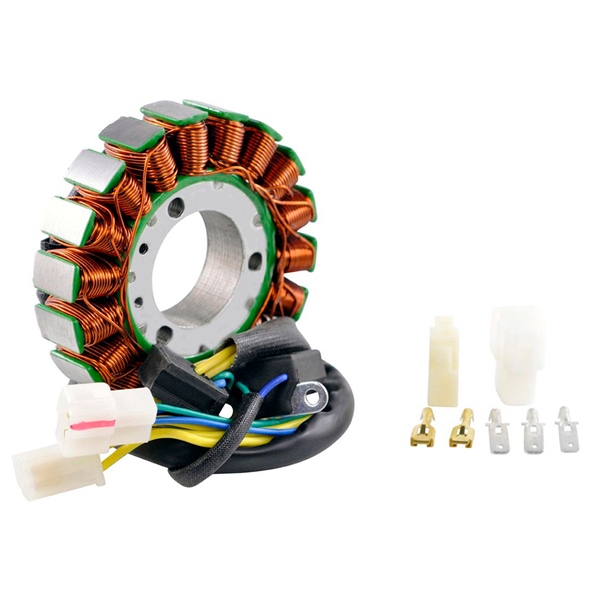

Image-1 Kimpex HD Stator HYOSUNG - 345000 STATOR HYOSUNG KIMPEXHD RMS010-101583 RMS010-101583 KIMPEXHD
Image-1 Kimpex HD Stator HYOSUNG - 345000 STATOR HYOSUNG KIMPEXHD RMS010-101583 RMS010-101583 KIMPEXHD Image-2 Kimpex HD Stator HYOSUNG - 345000 STATOR HYOSUNG KIMPEXHD RMS010-101583 RMS010-101583 KIMPEXHD

Kimpex HD Stator HYOSUNG - 345000 -60%

STATOR HYOSUNG KIMPEXHD

OEM #RMS010-101583

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$236.99 $94.80
Warehouse Qty: 2
  • Fitment
  • Details
CategoryMakeModelYear
MotoHYOSUNGGT6502006, 2007, 2009, 2010, 2011, 2012, 2013, 2014, 2015
MotoHYOSUNGGT650 FI2009, 2010, 2011, 2012, 2013
MotoHYOSUNGGT650 R2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
MotoHYOSUNGGT650 R FI2009, 2010, 2011, 2012, 2013
MotoHYOSUNGGT650 S2006, 2007, 2008
MotoHYOSUNGGT650 S/T2006, 2007, 2008
MotoHYOSUNGGV650 AQUILA2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
MotoHYOSUNGGV650 Aquila FI2009
MotoHYOSUNGGV650 Aquilia 80 FI2010, 2011, 2012, 2013
MotoHYOSUNGST-7 EFI2011, 2012, 2013
MotoHYOSUNGST7 EFI2011, 2012, 2013
MotoHYOSUNGST7 EFI Deluxe2013
Compatible BrandHYOSUNG
Internal Diameter (mm)38
External Diameter (mm)104
Thickness (mm)20
Number of wires5
Number of connectors2
Number of terminals5
