VOLTAGE REGUL/RECTIFIER MOSFET POL

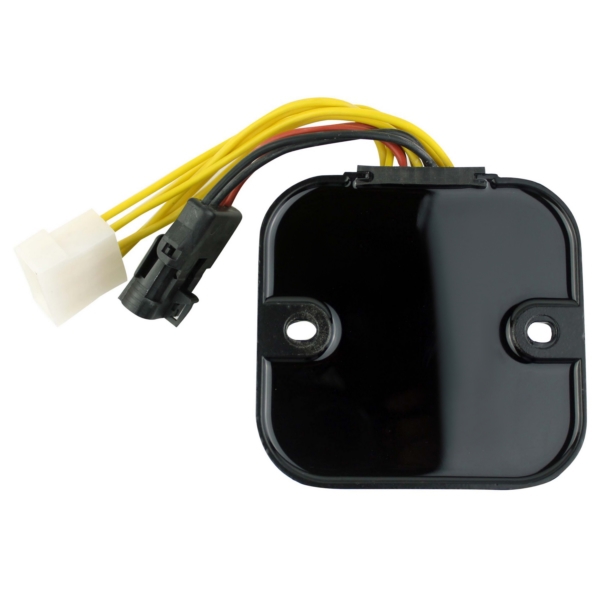

Image-1 Kimpex HD Mosfet Voltage Regulator Rectifier POLARIS - 285069 VOLTAGE REGUL/RECTIFIER MOSFET POL RM30333 RM30333 KIMPEXHD

Kimpex HD Mosfet Voltage Regulator Rectifier POLARIS - 285069 -10%

OEM #RM30333

Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced Mosfet type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Direct replacement to your original unit
No assembly required
Higher grade of electric components
Improved heat sink and charging capabilities
The quality exceeds the OEM equipment
All products shipped are tested
Two year limited warranty

Why use Mosfet Enhanced technology?

Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.

$147.99 $133.19

Warehouse Qty: 3

Fitment
Details

Category	Make	Model	Year
Snow	POLARIS	Frontier Classic 784 Edge 4 Stroke ES/R L/C 121"	2003, 2004
Snow	POLARIS	Frontier Touring 784 Edge 4 Stroke ES/R L/C 136"	2002, 2003, 2004, 2005
ATV	POLARIS	Sportsman 700	2005, 2006
VTT	POLARIS	SPORTSMAN 700 EFI	2005, 2006
ATV	POLARIS	Sportsman 700 EFI Browning Edition	2006
ATV	POLARIS	Sportsman 700 EFI Earnhardt	2005
ATV	POLARIS	Sportsman 700 EFI Hunter Edition	2005
VTT	POLARIS	SPORTSMAN 800 EFI	2005, 2006
ATV	POLARIS	Sportsman 800 EFI Browning Edition	2006
ATV	POLARIS	Sportsman 800 EFI Hunter Edition	2005

Width (mm)	107
Length (mm)	111
Height (mm)	51
Number of wires	N/A
Wire length	93 mm
Wire length	156 mm
Number of connectors	2
Number of terminals	10
MM between fixation holes	N/A
Compatible Brand	POLARIS
Notes	N/A
