STATOR KAWA KIMPEX

Image-1 Kimpex HD Stator KAWASAKI - 285104 STATOR KAWA KIMPEX RM01603 RM01603 KIMPEXHD
Image-1 Kimpex HD Stator KAWASAKI - 285104 STATOR KAWA KIMPEX RM01603 RM01603 KIMPEXHD Image-2 Kimpex HD Stator KAWASAKI - 285104 STATOR KAWA KIMPEX RM01603 RM01603 KIMPEXHD Image-3 Kimpex HD Stator KAWASAKI - 285104 STATOR KAWA KIMPEX RM01603 RM01603 KIMPEXHD Image-4 Kimpex HD Stator KAWASAKI - 285104 STATOR KAWA KIMPEX RM01603 RM01603 KIMPEXHD

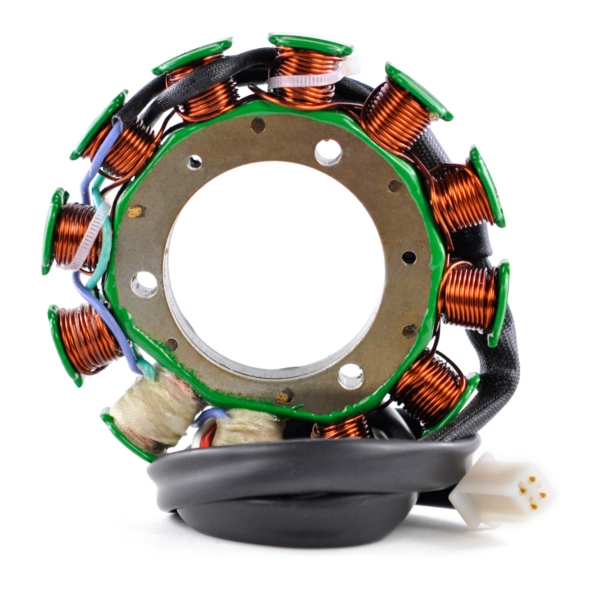

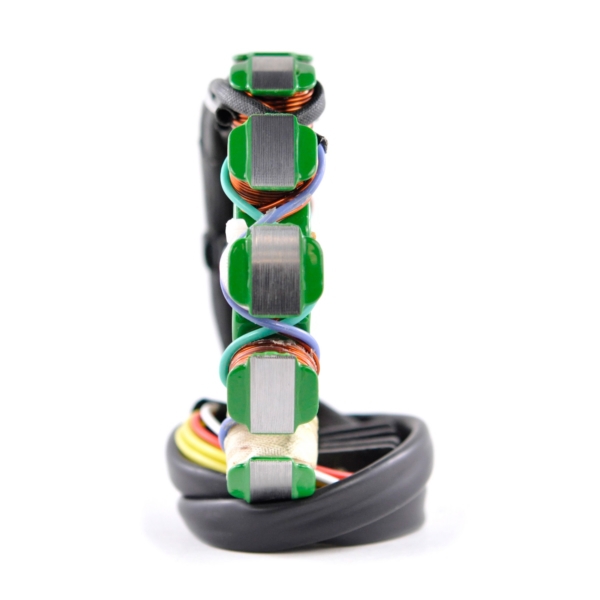

Kimpex HD Stator KAWASAKI - 285104 -60%

STATOR KAWA KIMPEX

OEM #RM01603

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

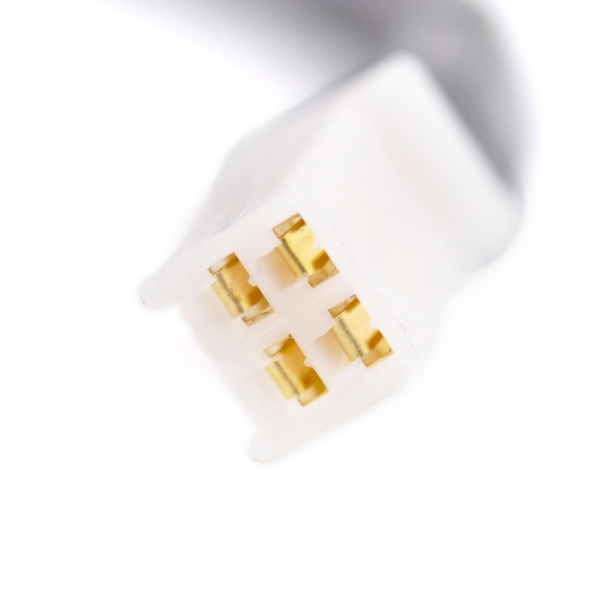

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$206.99 $82.80
Warehouse Qty: 2
  • Fitment
  • Details
CategoryMakeModelYear
MotoKAWASAKIKL2501985, 1986
MotoKAWASAKIKL250-D KLR1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
MotoKAWASAKIKLR2501987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
MotoKAWASAKIKLR250 Super Sherpa2000, 2001, 2002, 2003, 2004, 2005
Compatible BrandKAWASAKI
Internal Diameter (mm)54
External Diameter (mm)115
Thickness (mm)18
Number of wires4
Number of connectors1
Number of terminalsN/A
NotesN/A
