STATOR POL KIMPEX

Image-1 Kimpex HD Stator POLARIS - 285017 STATOR POL KIMPEX RM01401 RM01401 KIMPEXHD
Product Video Image-1 Kimpex HD Stator POLARIS - 285017 STATOR POL KIMPEX RM01401 RM01401 KIMPEXHD Image-2 Kimpex HD Stator POLARIS - 285017 STATOR POL KIMPEX RM01401 RM01401 KIMPEXHD Image-3 Kimpex HD Stator POLARIS - 285017 STATOR POL KIMPEX RM01401 RM01401 KIMPEXHD Image-4 Kimpex HD Stator POLARIS - 285017 STATOR POL KIMPEX RM01401 RM01401 KIMPEXHD Image-5 Kimpex HD Stator POLARIS - 285017 STATOR POL KIMPEX RM01401 RM01401 KIMPEXHD

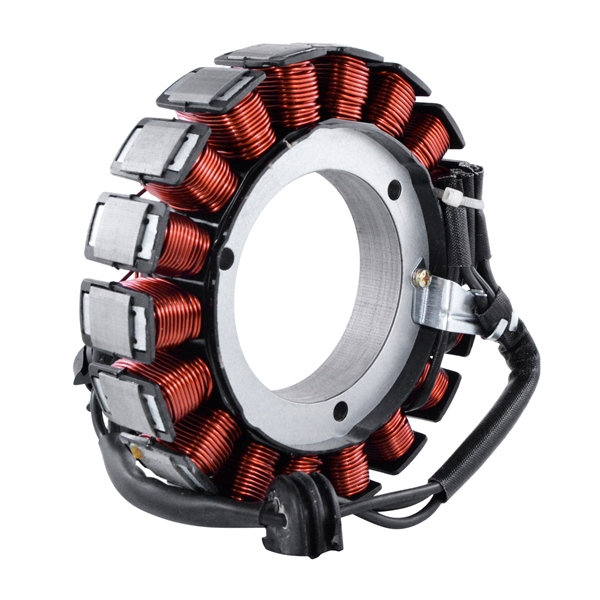

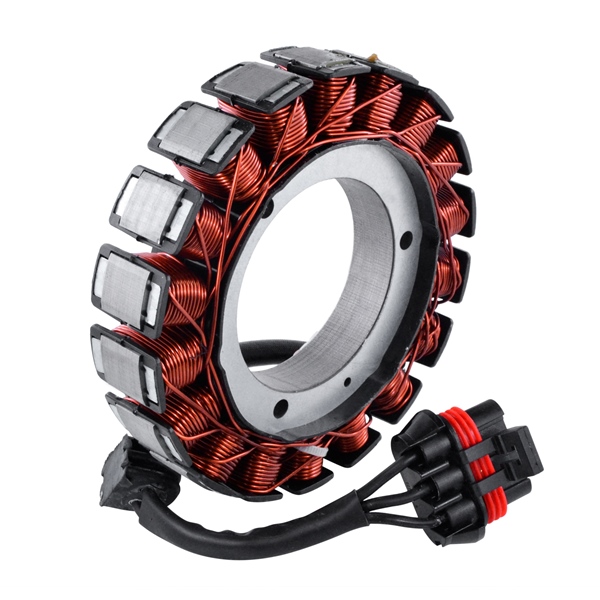

Kimpex HD Stator POLARIS - 285017 -10%

STATOR POL KIMPEX

OEM #RM01401

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

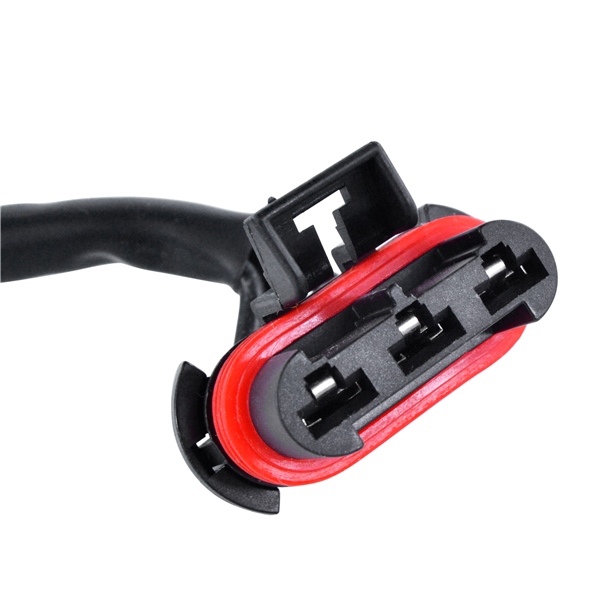

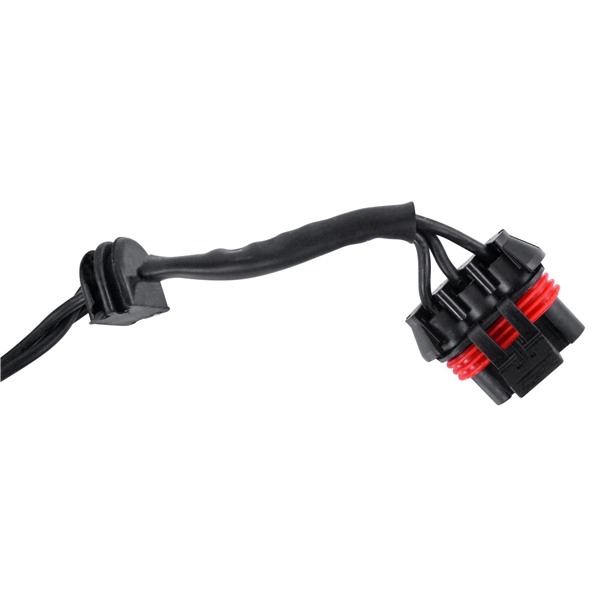

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$288.99 $260.09
Warehouse Qty: 8
  • Fitment
  • Details
CategoryMakeModelYear
VTTPOLARISSCRAMBLER 1000 XP EPS2014, 2015, 2016
ATVPOLARISScrambler 1000 XP EPS 4x42014, 2015, 2016
VTTPOLARISSCRAMBLER 8502015, 2016
VTTPOLARISSCRAMBLER 850 XP2013, 2014
ATVPOLARISScrambler 850 XP LE EPS2013, 2014
VTTPOLARISSPORTSMAN 1000 TOURING XP EPS2015, 2016
ATVPOLARISSportsman 1000 Touring XP LE EPS2015, 2016
VTTPOLARISSPORTSMAN 1000 XP EPS2015, 2016
VTTPOLARISSPORTSMAN 1000 XP HIGH LIFTER EPS2016
ATVPOLARISSportsman 1000 XP Hunt Edition EPS2016
VTTPOLARISSPORTSMAN 1000 XP HUNTER EDITION2016
ATVPOLARISSportsman 1000 XP LE EPS2015
VTTPOLARISSPORTSMAN 8502015, 2016
ATVPOLARISSportsman 850 Forest 4X42012, 2013, 2014
VTTPOLARISSPORTSMAN 850 HIGH LIFTER EPS2016
VTTPOLARISSPORTSMAN 850 SP EPS2015, 2016
VTTPOLARISSPORTSMAN 850 TOURING EPS2013, 2014
ATVPOLARISSportsman 850 Touring LE EPS2013, 2014
VTTPOLARISSPORTSMAN 850 TOURING SP EPS2015, 2016
ATVPOLARISSportsman 850 X2 EFI2011
VTTPOLARISSPORTSMAN 850 XP2009, 2010, 2011, 2012, 2013
ATVPOLARISSportsman 850 XP EPS2009, 2010, 2011, 2012, 2013, 2014
ATVPOLARISSportsman 850 XP EPS Browning2011
ATVPOLARISSportsman 850 XP HO2012
ATVPOLARISSportsman 850 XP HO EPS2012
ATVPOLARISSportsman 850 XP Hunter LE EFI EPS2010
ATVPOLARISSportsman 850 XP LE Browning2009
ATVPOLARISSportsman 850 XP LE EPS2009, 2010, 2011, 2012, 2013
ATVPOLARISSportsman 850 XP LE EPS Browning2012, 2013, 2014
VTTPOLARISSPORTSMAN WV8502014
VTTPOLARISSPORTSMAN X2 8502011
Compatible BrandPOLARIS
Internal Diameter (mm)69
External Diameter (mm)144
Thickness (mm)20
Number of wires3
Number of connectors1
Number of terminals3
NotesN/A
