STATOR POL KIMPEX

Image-1 Kimpex HD Stator POLARIS - 285642 STATOR POL KIMPEX RM01291 RM01291 KIMPEXHD
Product Video Image-1 Kimpex HD Stator POLARIS - 285642 STATOR POL KIMPEX RM01291 RM01291 KIMPEXHD Image-2 Kimpex HD Stator POLARIS - 285642 STATOR POL KIMPEX RM01291 RM01291 KIMPEXHD

Kimpex HD Stator POLARIS - 285642 -10%

STATOR POL KIMPEX

OEM #RM01291

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

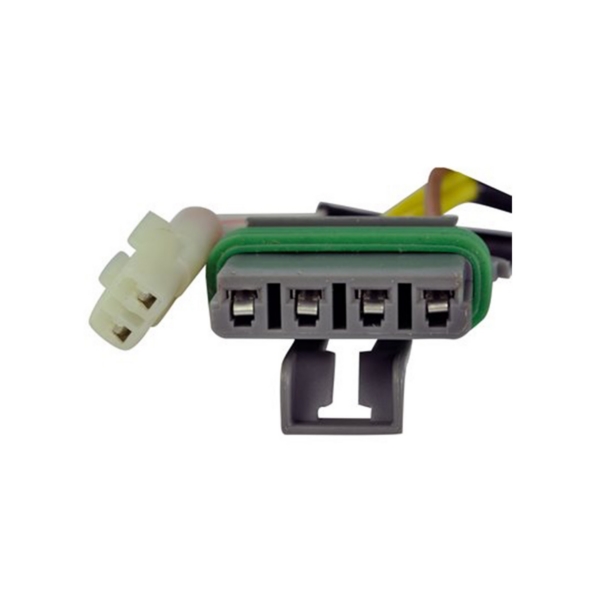

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$265.99 $239.39
Warehouse Qty: 13
  • Fitment
  • Details
CategoryMakeModelYear
ATVPOLARISRanger 500 4x42006, 2007
ATVPOLARISRanger 500 4x4 EFI2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
ATVPOLARISRanger 500 4x4 LE EFI2012, 2013
UTVPOLARISRANGER 500 CREW2011, 2012, 2013
UTVPOLARISRANGER 500 EFI 4X42006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
ATVPOLARISRanger Crew 5002011, 2012, 2013
ATVPOLARISRanger Crew 500 LE2012, 2013
VTTPOLARISSPORTSMAN 500 EFI2006, 2007, 2008, 2009
ATVPOLARISSportsman 500 EFI Browning Edition2006
ATVPOLARISSportsman 500 EFI deluxe2007
ATVPOLARISSportsman 500 EFI Touring2008, 2009
ATVPOLARISSportsman 500 Forest Tractor 4X42011, 2012, 2013, 2014
ATVPOLARISSportsman 500 HO2006, 2008, 2009, 2010
VTTPOLARISSPORTSMAN 500 TOURING2008
VTTPOLARISSPORTSMAN 500 X22006, 2007, 2008, 2009
ATVPOLARISSportsman 500 X2 EFI2006, 2007, 2008, 2009
ATVPOLARISSportsman 500 X2 EFI Deluxe2007
Compatible BrandPOLARIS
Internal Diameter (mm)41
External Diameter (mm)114
Thickness (mm)14
Number of wires6
Number of connectors2
Number of terminals7
NotesN/A
