STATOR HON KIMPEX

Image-1 Kimpex HD Stator HONDA - 285727 STATOR HON KIMPEX RM01103 RM01103 KIMPEXHD
Product Video Image-1 Kimpex HD Stator HONDA - 285727 STATOR HON KIMPEX RM01103 RM01103 KIMPEXHD Image-2 Kimpex HD Stator HONDA - 285727 STATOR HON KIMPEX RM01103 RM01103 KIMPEXHD

Kimpex HD Stator HONDA - 285727 -10%

STATOR HON KIMPEX

OEM #RM01103

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

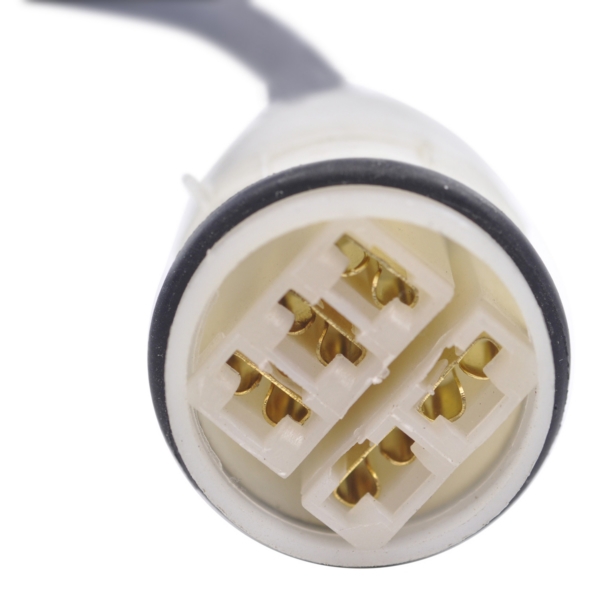

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

$265.99 $239.39
Warehouse Qty: 4
  • Fitment
  • Details
CategoryMakeModelYear
VTTHONDATRX680FA 4X4 RINCON2011, 2012, 2013, 2014
ATVHONDATRX680FA5 4x4 Rincon Auto IRS2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
VTTHONDATRX680FG 4X4 RINCON2006, 2007, 2008, 2009, 2010
ATVHONDATRX680FG 4x4 Rincon GPS2006, 2007, 2008, 2009, 2010
Compatible BrandHONDA
Internal Diameter (mm)54
External Diameter (mm)115
Thickness (mm)20
Number of wires5
Number of connectors1
Number of terminals5
NotesN/A
