GENERATOR STATOR/SEAL COVER MAGNETO YAM

Image-1 Kimpex HD Stator and Crankcase Cover Gasket YAMAHA - 225402 GENERATOR STATOR/SEAL COVER MAGNETO YAM RM01004G RM01004G KIMPEXHD
Image-1 Kimpex HD Stator and Crankcase Cover Gasket YAMAHA - 225402 GENERATOR STATOR/SEAL COVER MAGNETO YAM RM01004G RM01004G KIMPEXHD Image-2 Kimpex HD Stator and Crankcase Cover Gasket YAMAHA - 225402 GENERATOR STATOR/SEAL COVER MAGNETO YAM RM01004G RM01004G KIMPEXHD Image-3 Kimpex HD Stator and Crankcase Cover Gasket YAMAHA - 225402 GENERATOR STATOR/SEAL COVER MAGNETO YAM RM01004G RM01004G KIMPEXHD

Kimpex HD Stator and Crankcase Cover Gasket YAMAHA - 225402 -10%

GENERATOR STATOR/SEAL COVER MAGNETO YAM

OEM #RM01004G

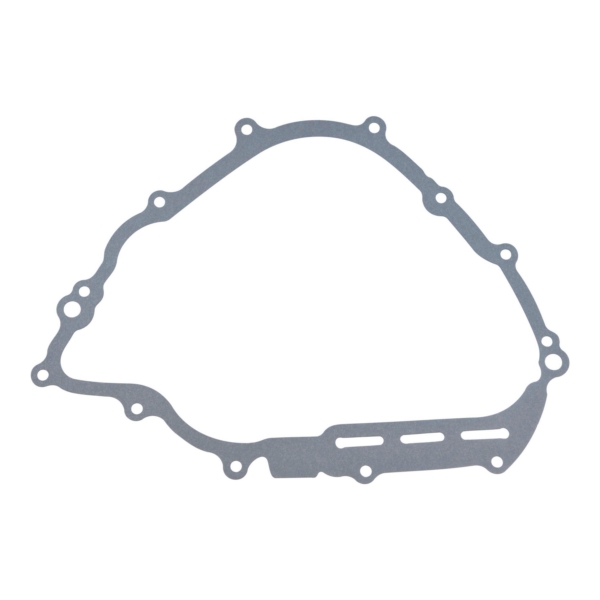

  • Stator crankcase cover gasket included
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Pick up pulsar coil included

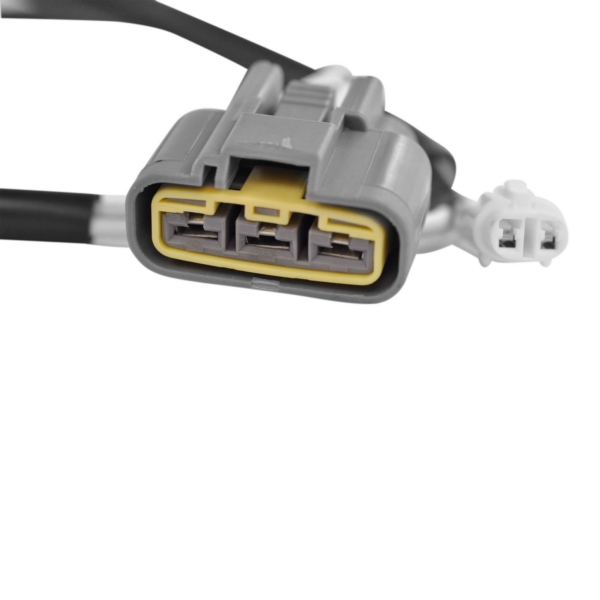

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
  • One year limited warranty

$296.99 $267.29
Warehouse Qty: 19
  • Fitment
  • Details
CategoryMakeModelYear
ATVYAMAHAGrizzly 550 4x4 FI2009, 2010, 2011, 2012, 2013, 2014
ATVYAMAHAGrizzly 550 EPS 4x4 FI2009, 2010, 2011, 2012, 2013, 2014
ATVYAMAHAGrizzly 550 EPS 4x4 Hunter2009, 2012, 2013, 2014
ATVYAMAHAGrizzly 550 EPS 4x4 LE2012, 2013, 2014
ATVYAMAHAGrizzly 550 EPS 4x4 SE2009, 2011
ATVYAMAHAGrizzly 700 4x4 Auto2007, 2008
ATVYAMAHAGrizzly 700 4x4 FI2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
ATVYAMAHAGrizzly 700 4x4 Hunter FI2009
ATVYAMAHAGrizzly 700 EPS 4x4 FI2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
ATVYAMAHAGrizzly 700 EPS 4x4 Hunter FI2008, 2010, 2011, 2012, 2013, 2014, 2015
ATVYAMAHAGrizzly 700 EPS 4x4 LE2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
ATVYAMAHAGrizzly 700 EPS 4x4 SE2010, 2011, 2012, 2013, 2014, 2015
ATVYAMAHAGrizzly 700 EPS DUCKS2008, 2009
Compatible BrandYAMAHA
Internal Diameter (mm)45
External Diameter (mm)106
Thickness (mm)27
Number of wires5
Number of connectors2
Number of terminals5
