PULLEY DOUBLE SWING SST

Image-1 Portable Winch Double Swing Side Pulley with stainless steel plates PULLEY DOUBLE SWING SST PCA-1273 PCA-1273 PORTABLEWINCH
Image-1 Portable Winch Double Swing Side Pulley with stainless steel plates PULLEY DOUBLE SWING SST PCA-1273 PCA-1273 PORTABLEWINCH Image-2 Portable Winch Double Swing Side Pulley with stainless steel plates PULLEY DOUBLE SWING SST PCA-1273 PCA-1273 PORTABLEWINCH Image-3 Portable Winch Double Swing Side Pulley with stainless steel plates PULLEY DOUBLE SWING SST PCA-1273 PCA-1273 PORTABLEWINCH Image-4 Portable Winch Double Swing Side Pulley with stainless steel plates PULLEY DOUBLE SWING SST PCA-1273 PCA-1273 PORTABLEWINCH

Portable Winch Double Swing Side Pulley with stainless steel plates -5%

PULLEY DOUBLE SWING SST

OEM #PCA-1273

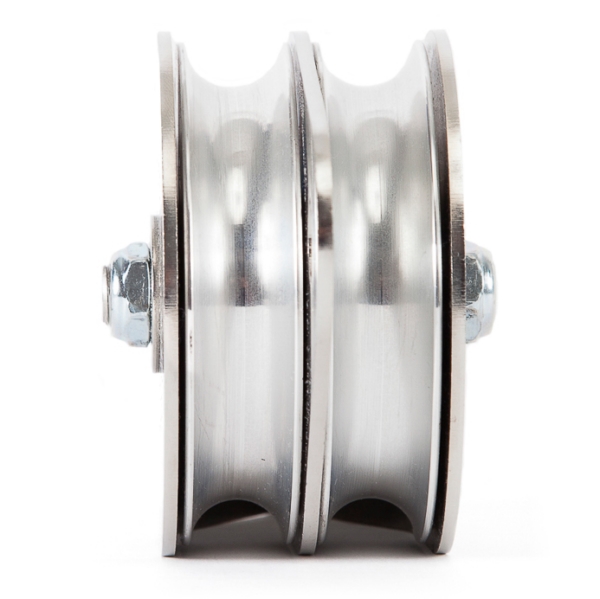

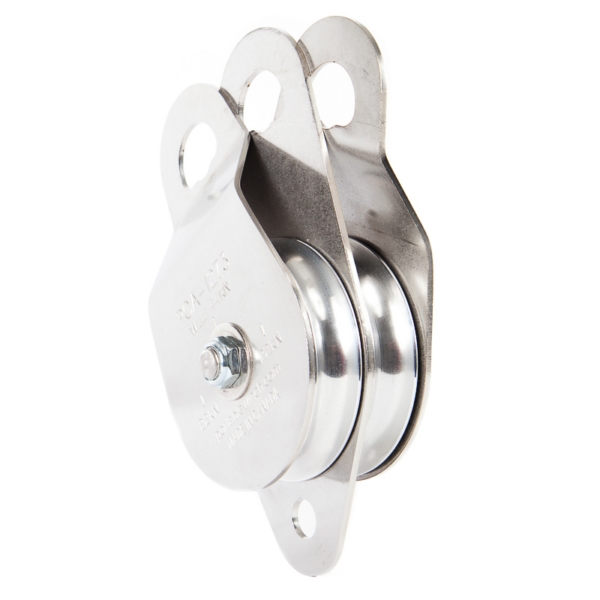

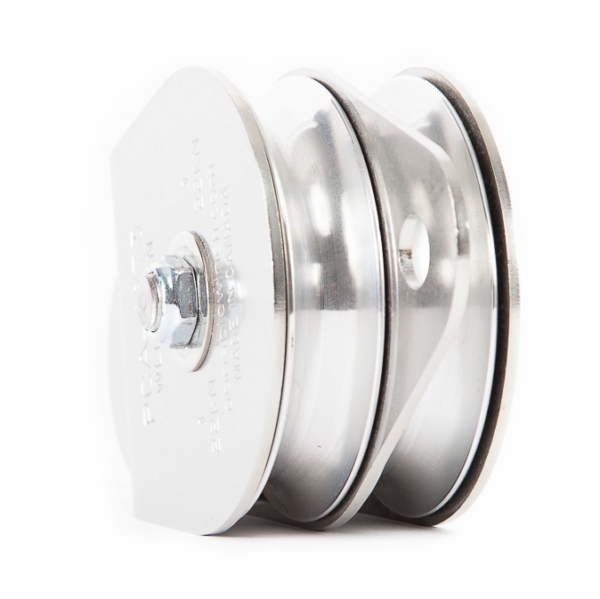

This stainless steel swing side snatch block features two lightweight 100 mm diameter deep groove aluminum sheaves, with stainless steel plates that swing open to install rope. Sintered bronze bushings on stainless steel shaft provides 98% efficiency.

The middle plate has a hole at the bottom, allowing you to attach the end of the rope with a carabiner when necessary.

Use the 70 kN steel locking carabiner (PCA-1701) to anchor the snatch block to a polyester sling.

When you use this pulley with a PCA-1274 pulley, you can quadruple the pulling power of the winches. With two double pulleys, an amazing 5 tons of force can be exerted on a load (using the PCW5000)!

Material : Sides: Stainless steel. Sheaves: Aluminum


Rope

  • Minimum diameter (metric) : 6 mm
  • Maximum diameter (metric) : 12 mm

$159.99 $151.99
Warehouse Qty: 1
  • Details
CapacityUp to 9680 lbs
MaterialAluminum
MaterialStainless steel
