CKX Apex Lunette Battery
BATTERY KIT APEX CKX
OEM #599262

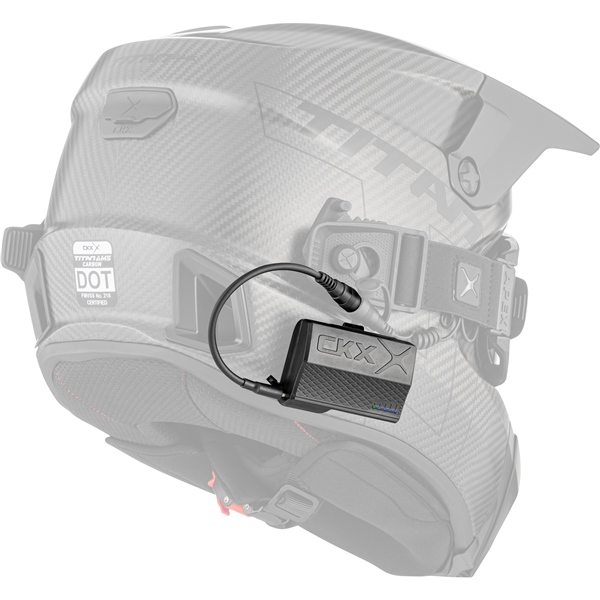

The APEX battery is specially designed to power the APEX goggles of the Titan AMS helmet.
Power Modes
When paired with the controller strap (Ref. 599259), this battery enables 4 power modes for the goggles:
- Maximum power for 10 minutes
- Continuous maximum power — 4.5 hours of battery life
- Continuous medium power — 6 hours of battery life
- Continuous minimum power — 8 hours of battery life
Charging
- Minimum charging requirement: 5V @ 2A
- Supports Power Delivery (PD) protocol (typically 5V @ 3A, 9V @ 2.22A, 12V @ 1.67A)
- Full charge can be completed in less than 2 hours
Additional Features
The APEX battery can also power other electrical accessories that are powered from either USB-C or RCA.
For USB-C devices, the APEX battery can supply either 5V, 9V or 12V and has a maximum power output of 18W.
Battery Kit Includes
- APEX Battery — Ref. 599261
- USB-C to RCA power cable — Ref. 599260
- USB-C to USB-C charging cable — Ref. 599127
- Battery clip — Ref. 599213
Specifications
- Voltage: 7.2V
- Capacity: 3000mAh
- Energy: 21.6 Wh
Warnings
- Most accessories are designed for a voltage of 12V, while the APEX battery provides 7.2V. Some heating accessories may be slightly less warm than when powered by a 12V circuit.
- Current is intended to flow from USB-C to the RCA connector, not the other way around. Using this cable (599214) to attempt charging a USB-C device is not recommended.
$129.99
