COMMANDER WS4 WITH RATIO (4X156)

COMMANDER WS4 Track Kit -16%

COMMANDER WS4 WITH RATIO (4X156)

OEM #2810524

To install tracks on your ATV, you need:

Step 1

• Choose your WS4 Track kit

Step 2

• Select the proper track adapter (BOM1) depending on your VTT model.

  • It is recommended to browse the website using the Search “by vehicle” search tool.

Step 3

• Select the proper Front anti-rotation (BOM2) and rear (BOM3).

  • It is recommended to browse the website using the Search “by vehicle” search tool.

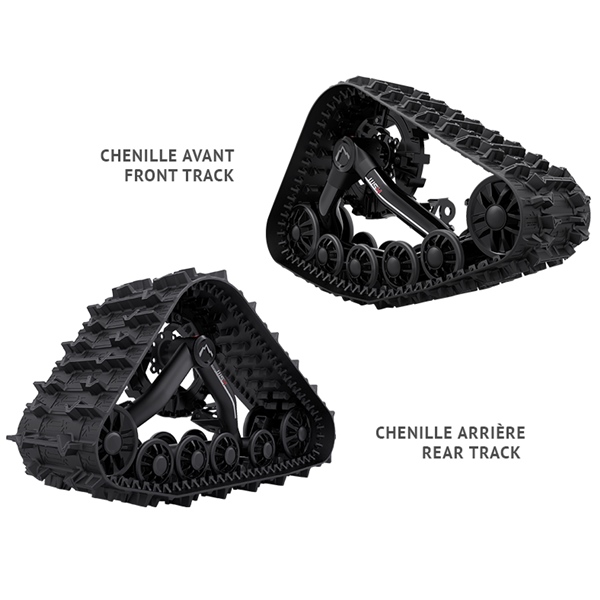

The WS4 is the logical continuation of our “Commander” series, with reduced driving effort, decreased vibration and same traction capability as always for the best performance in all 4 seasons. Of course, the same sturdiness is maintained through a 2.5” tubular frame and an overall lightweight necessary to surf on snow.

Why limit yourself when you could drive a WS4 “Commander”!

• 15” (381 mm) sprocket built for all season use
• Aggressive track profile
• HD tensioner: Quick & easy to use
• Pronounced attack angle helps to clear obstacles
• Wheels contact patch coated with rubber: Prevents ice from sticking
• System without slider shoe for all season performance
• Three wheels on the ground for less steering effort
• Wheels with two cap-protected ball bearings : low and easy maintenance
• Triangulated frame composed of robust 2.5” (64 mm) steel tubing

• Width: 292 mm / 11.5” front, 330.2 mm / 13” rear
• Length: 2460 mm / 97” front, 2540 mm / 100” rear
• Weight: (without mount kit) 72 lb. / 32 kg front, 75 lb. / 34 kg rear
• Frame material: Steel
• Lug height: 25 mm / 1.00” front, 32 mm / 1.25” rear
• Drive type: Internal
• Flotation surface: 1.32 m² / 2045 in² total = 0.61 m² / 945 in² front & 0.71 m² / 1100 in² rear
• Ground clearance: Increase of 125 mm / 5”
• Speed loss: 35%
• Initial installation time: 1,5 hrs.
• Subsequent installation time: 30 minutes
• Applications: ATV only

• Snow: Deep, Moderate, Path and Springtime
• Off Snow: Marshland, Mud, Sand, Dirt road and Gravel

• Outlander G1 (Since 2012) = 715 000 969
• Outlander G2 (2013 and up) = 715 001 202
• Outlander L = 715 001 202
• Renegade G2 (2012 and up) = 715 001 202

*An additional bulk shipping fee of $300.00 will apply at checkout.
